Biomass Ring Die Wood Pellet Machine/Flat Die Sawdust Pellet Press Machine

Ring Die Biomass Wood Pellet Machine

Professional Manufacturer

Questions Service

Ms Jennifer: Email pelletmill08@tonyjixie.com, Mob: +86 15854107188

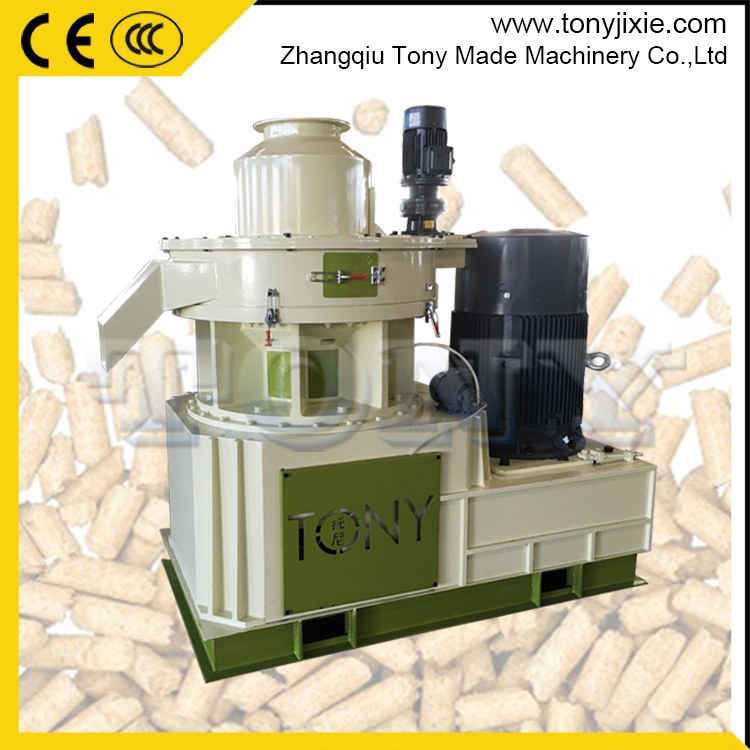

Introduction of BIomass wood Pellet Machine

2 pellet machine.jpg

It is a newly wood pellet mill machine, researched, designed and produced by ourselves. It's mainly used to produce biomass pellets from the materials kinds of wood, waste wood and straws, etc. such as woodchips(palm, pine white pine, mahogany, pinus sylvestris, rubber tree), bamboo shavings, rice hust, seeds shells, peanut shells, halm, pennisetum, wheat straw, corn stalk, cotton stalks, alfalfa grass, bagrass, palm fiber, waste paper, non-physical material.

Working Principle of Biomass Ring Die Wood Pellet Machine

working principle-1.jpg

Features of Vertical Ring Die wood pellet machine

Self -lubrication system

A.Spindle automatic lubricatin system

B.Roller automatic lubricatin system: keep the pellet machine in maintenance for 24hours.

Output of pellet mill machine: Can reach the expected output in our technical parameter.

Working Life of spare parts: Working life of our dies is 2500-3000 h, much longer than others'.

Number of Our Ring Die holes: Our ring die has 5 rows of holes, much more than others'.

Driving Method of pellet machine: Our machine is drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.

Forged Main Shaft: Our main shaft is forged, not casted. As well known, there is no air bubble in forging process, so it is hard to be broken.

Technical Data of Biomass wood pellet machine

Model

Power(KW)

Capacity(T)

Weight(T)

Size(mm)

Remark

TYJ450-II

55

0.8-1.2

2

1350*850*1500

Gear Transmission

TYJ550-II

110

1.5-2

4

1850*1050*1800

TYJ680-II

160

2-2.5

6

2150*1180*1950

TYJ860-II

220

2.5-3.5

8

2430*1380*2100

TYJ980-II

315

3.5-5

12

2800*1500*2500

Requirements for raw materials

Size: Less than 5mm (All the raw materials must be crushed into sawdust before going

to wood pellet machine.If not, you may need a wood chipper, wood crusher.)

Moisture: Generally, 10-15% is best for producing good quality wood pellet.

Why to control the moisture of raw material ? The following picture tells you the reason.

pellets moisture.jpg

Ringt Materials and Moisture, High Quality Pellets

Pellets Diameter: 4mm, 6mm, 8mm, 10mm, 12mm

tony pellet-1

Main Spare parts of biomass wood pellet mill machine

pellet machine spare parts.jpg

Characteristic Vertical Ring Die Biomass Pellet Machine

1

Rollers

Be made of alloy steel and stainless steel with longer service time

2

Ring Die

Double layers with longer service time
Be made of alloy steel and stainless steel with professional heat treatment technology.

3

Main Shaft

Be forged three times by traditional handcraft to reach best toughness and hardness, not easy to broken.

4

Vertical motor

working vertically; Mounting hole is centered with shaft and equally distributed, offering more power and working stability for the pellet machine.

5

Driving method

drived by gear,not reduction box; Gear driving is helpful to increase the usage life of gear, so the maintenance rata of gear is much lower.

6

Working method

pressing from the inside to outside, centrifugal force with eatrusion

7

Automatic lubrication

A.Spindle automatic lubricatin system
B.Roller automatic lubricatin system : it can keep the pellet machine in maintenance for 24hours

8

Vertical feeding, directly in place; Die is static, rollers rotary

TYJ550 Series Vertical Ring Die Pellet Machines

pellet machines TYJ550 series.jpg

Clients Visiting & TONY Exhibition of Biomass Pellet Machine

Localisation : Zheshan Industrial Park, Zhangqiu City, 250200 Zhangqiu,
Personne à contacter : Jennifer Zhao, 0086 15854107188
