BJ-SJPQZ Cable Measuring And Winding Machine

More information about Cable coiling and binding machine

Operation Video of BJ-SJPQZ Cable Measuring And Winding Machine

Function of BJ-SJPQZ Cable Measuring And Winding Machine

Meter, wire cutting, winding displacement /trimming, winding, binding

Features of BJ-SJPQZ Cable Measuring And Winding Machine

  • High accuracy for meter, with complete function, Meter, winding displacement, winding and binding wire
  • Trim winding displacement
  • Available different wire diameter

Equipment parameter of BJ-SJPQZ Cable Measuring And Winding Machine

  • Winding coils: 1-999coils
  • Winding speed: 1-4coils/sec
  • Available wire diameter: ф2-7mm orф6-10mm, only can choose one spec.
  • Winding wire diameter(inside diameter): 60-190mm, we will match two specs different size winding axles, it is nonadjustable.
  • Winding wire diameter(outside diameter): less than260mm
  • Width of winding displacement: 10-70mm
  • Available wire shape: round, flat wire(doubling etc.)
  • Binding diameter: 5-28mm or 15-40mm. only can choose one spec.
  • Available belt length: 75-135mm or 120-180mm, only can choose one spec.
  • Twisting belt coils: 2-8 coils. It is adjustable
  • Dimension: 1100*1150*430mm
  • Weight: around 75KG
  • Voltage: AC220V±10% 50Hz/60Hz
  • Power: <1000w</li>
  • Whether trim winding displacement or not: trim
  • The meter length tolerance: less than 5 m tolerance is ±1cm

5-10 m tolerance is ±1.5-2cm
10-20 m tolerance is ±3-3.5cm
20-30 m tolerance is ±4-5cm

Remark of BJ-SJPQZ Cable Measuring And Winding Machine

The quotation does not include the price of pay-off machine, the price of pay-off machine based on the wire degree of thickness, weight. And for the round wire which diameter less than 4mm, also the wire material is soft, we suggest not use the payoff machine.

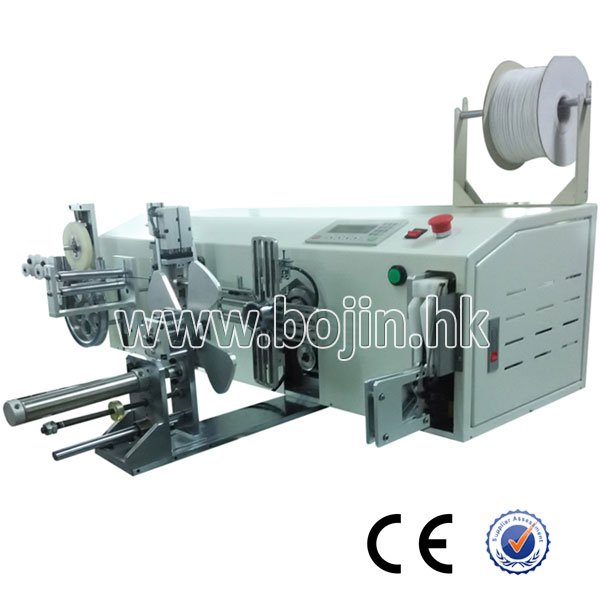

Wire Winding And Measuring Machine BJ-SJPQZ 1

Wire Winding And Measuring Machine BJ-SJPQZ

BJ-SJPQZ Cable Measuring And Winding Machine

Wire Winding And Measuring Machine BJ-SJPQZ

Wire Winding And Measuring Machine BJ-SJPQZ 3

Wire Winding And Measuring Machine BJ-SJPQZ
