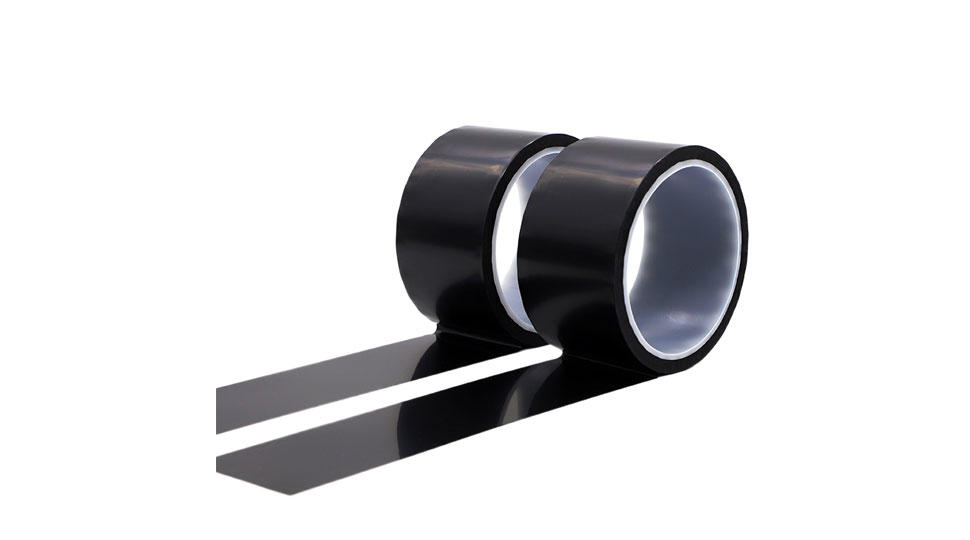

Black Kapton Tape
Prix : 100USD
Mat black or bright black polyimide tape, black PI tape, Black Kapton tape is a type of heat resistant tape and is made of black polyimide film as a substrate, coated with imported high temperature silicone pressure sensitive adhesive on one side. The main specification is 0.06 mm, the length is 33M/66M, and according to customer requirements, the width can be cut freely between 3 mm and 500 mm. As a heat resistant tape manufacturer, our Black Tapton tape with PET fluorine release liner can be die-cut.
Black Kapton Tape-Technical Data Sheet (standatd：GB/T2792-1999，GB/T4852-1999）
|
Item |
Adhesive |
Total thickness (mm) |
Width (mm) |
Length (m) |
Adhesion (N/25mm) |
Tensile Strength (N/25mm) |
Elongation % |
Temperature (℃) |
|
|
Value |
silicone |
0.06 |
3-500 |
33/customized |
6 |
115 |
45 |
260 |
|
|
Remark |
Black kapton tape packaging is generally roll tape or a single-sided composite release film cut into sheets, or punched according to the special needs of customers.Die-cutting processing is high cost performance! Special specifications can be special processing. |
|
|||||||
Application Of Black Kapton Tape
Electronic products are fixed by reflow soldering, and the characteristics of good adhesion and no residual glue after removed, which meet the needs of circuit board reflow soldering and fixing.
The use of motors, motors and other electronic products will generate heat energy during operation, this tape can withstand high temperature 260C, Black kapton tapecan be used for bundling and fixing.
Mobile phone screen repair, the temperature resistance and insulation of the Black kapton tape can effectively protect the circuit board, and the product life is longer
Features Of Black Kapton Tape
High insulation, strong adhesion, no residual, corrosion resistance
Good shielding effect, Black kapton tape can cover 70% strong light, 100% DE low light
High temperature 260℃ 30mins resistant.
