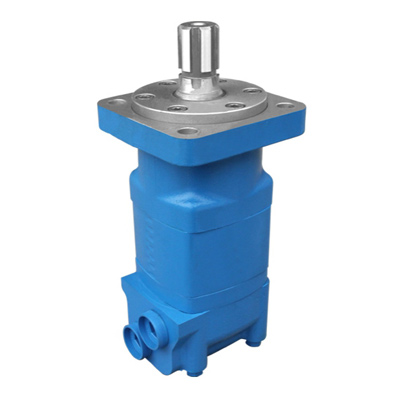

BM6 High Pressure Motor

Prix : 100USD

What is BM6 High Pressure Hydraulic Motor?

BM6 hydraulic motor is a face-end flow, pressure-compensated motor, mainly composed of output shaft, front cover, bearing, long linkage shaft, bearing housing, stator and rotor pair, valve disc, small linkage shaft, distribution plate and preloading spring. This hydraulic motor features low speed and high torque. The motor has a six-toothed cycloidal rotor, which is installed in the middle of the stator and meshes with the stators of the seven arc teeth to form seven sealed spaces; 12 holes on the distribution plate, 6 of which are combined with the oil. The mouth is connected, and the other six are connected to the back (in) port. The seven holes auxiliary distribution plates on the valve disc form a seven volume chamber with the cycloidal rotor.

Characteristic Features of BM6 High Pressure Motor:

BM6 is a large volume, disc valve, high pressure motor, with ball-bearings design, and can bear big load, and has higher torque than BM5. Advanced design in disc distribution flow, which can provide improved performance at low speed. The valve can automatically compensate for the wear, so the volumetric efficiency is high. Double taper roller bearings permit high radial loads. The motors can be used on heavier vehicles in traction drive applications

Product Description

Quick Details

Type

Hydraulic Motor

Series

BM6 hydraulic motor

Place of Origin

China (Mainland)

Brand Name

Gulex

Displacement(ml/r)

195-985

Material

Ductile Iron

max torque(N*m)

575~1875N*m

Surface treatment

Spray Painting

pressure(MPa)

12~20.5 MPa

Max cont Flow

150L/min

Speed(RPM)

153~775r/min

Oil temperature

-35℃~80℃

JC forging is a professional manufacturer of precision forging parts. We provide disc valve hydraulic motor, hydraulic motor spool valve, hydraulic cylinder components and etc. Want to know more? Please contact us.

Localisation : Ningjin, Xingtai, Hebei province, China, 055550 Ningjin,
Personne à contacter : Lei Alex , +86 13917524350
