Body Camera Docking Station
Types of Body Camera Docking Station

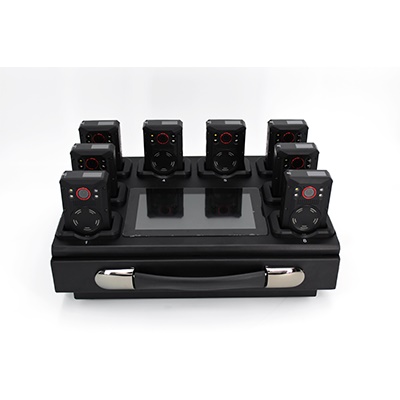

7 Inch 8 Ports Docking Station With Screen
8 Ports Simple Docking Station
Body Worn Camera Kiosk Docking Station
10 Ports Docking Station
Features of 7 Inch 8 Ports Docking Station With Screen
With 7 inch LCD Monitor to check the status for charging and recording output
Support touch screen
Maximum Quantity of Supported body cameras: 8PCS
With One removable Hard disk box, support connects 2TB-10TB hard disk.
memory: 4GB;
J1900 industrial motherboard design, more stable
Support connect keyboards or Mouse to operate.
Including Digital evidence management system software
17 Inch Monitor with 20 ports( for 20 body-worn cameras) optional
Specifications of 7 Inch 8 Ports Docking Station With Screen
|
Item |
specification |
|
House |
dimension 36CM*26CM*12CM（L*W*H） 8 USB ports |
|
Screen size |
7 inch LED |
|
Screen Resolution |
1024X600 |
|
Screen contrast |
1000: 01: 00 |
|
Screen colur |
16.2M |
|
Screen brightness |
250cd/㎡ |
|
Touch Screen |
Capacitive touch screen |
|
Morthboard |
J1900 Industrial Motherboard |
|
CPU |
Intel Turbo Boost 2.42 GHz double cores |
|
RAM |
DDR3 1600L 4GB |
|
SSD |
SSD 60G |
|
Hard drive bay |
One bay for inserting a hard disk |
|
Hard disk |
optional hard drive 2T /4T/ 6T /8T hard drive |
|
Power |
Industrial power supply output rating 85W |
|
USB interface |
10 USB ports HUB output current 1.2A for every port |
|
Ouside USB interface |
2 USB2.0 ports |
|
Audio |
ALC662 chip, supply 6 channel output |
|
Speaker |
two 8 OHM 3W speaker |
|
Lan interface |
Onboard Realtek RTL8111F 1000M Lan card |
|
WIFI |
Intel 5100 Wifi module，6dbWifi antenna |
|
Work temperature |
subzero 20 ---+80 degree temperatures, |
|
Storage Temperature |
subzero 20℃——60℃ |
|
Storage Humidity |
Humidity：10%~90% |
|
Lan cable |
RJ45 100M cable |
|
Power cable |
Optional power cable: China standard, European standard, American Standard, British Standard |
|
Power supply |
AC power source 110-220V AC |
|
Operation system |
Default optional XP/Win8/Win10 the system Win7 system |
|
Docking station system |
Optional installation docking station system |
As a police camera manufacturer, we can provide kinds of related products for sale, if you have needs, please contact us.
