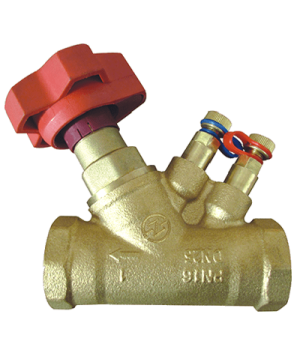

Bronze Flow Balancing Valve

ZECO Valve Group is a humble and united team, to be more dilligent and progessive to show the itegrity to our clients, ZECO gate valve is designed with built-in safety reliability in every detail. WRAS approved rubber and epoxy powder make the valve suitable for drinking water.

Festures of Bronze Flow Balancing Valve

108. Good sealing, no , easy to adjust the rotation;

108. Small mounting space, accurate and clear opening indication;

108. The use of inclined valve core and stem is more fluid flow in the valve

108. The surface is smooth and clean, and the appearance is delicate and beautiful.

Bronze Flow Balancing Valve Working Principle

The bronze balancing valve regulates the flow rate of medium through its valve body, balancing the valve stem up and down by turning the regulating valve handle, adjusting the flow path and changing the flow curve characteristics. Pressure gauges equipped on the balance valve body are used to measure pressure differential, which can be used to detect and adjust the flow rate.

As one of the hydronic balancing valve manufacturers, ZECO specialized in manufacturing balancing valve. This valve can be installed either on the water supply pipe or on the water return pipe. Generally, it is recommended to be installed on the water return pipe, especially on the high-temperature loop. For specific use, please consult ZECO Valve Group.

Bronze Flow Balancing Valve Material and Standard

Size Range: 3/4"~2"

Pressure Rating: 10bar ~ 16bar

Face to Face Dimensions: EN 558-1, ASME B 16.10

Flange End Dimension: BS 21

Inspection and Test: ISO 5208 / EN 12226-2
