BS 5467 Armoured Power Cables 600/1000V, 1933/3300V
Applications
These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

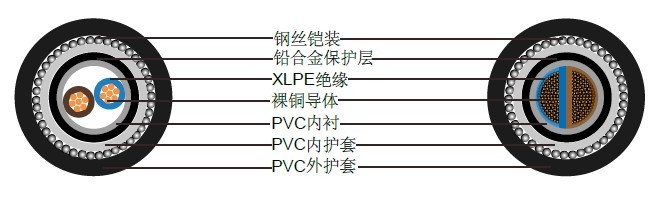

Construction
| Conductor | Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228. |
|---|---|
| Insulation | XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6) |
| Colour Code | 1 Core : Brown |
| 2 Cores: Brown or Blue | |
| 3 Cores: Brown, Black, Grey | |
| 4 Cores: Blue, Brown, Black, Grey | |
| 5 Cores: Green/Yellow, Blue, Brown, Black, Grey | |
| Above 5 Cores: White Cores with black numbers | |
| Bedding | PVC (Polyvinyl Chloride) |
| Armour | Single Core: AWA (Aluminum Wire Armour) |
| Multi Core: SWA (Steel Wire Armour) | |
| Outer Sheath | PVC(Polyvinyl Chloride) |
Technical Information
| Voltage rating | 600/1000V |
|---|---|
| Temperature rating | 0°C to +90°C |
| Bending radius | 1.5mm² to 16mm² : 6 x overall diameter |
| 25mm² and above : 8 x overall diameter | |
| Flame retardant | IEC60332 part 1, BS4066 part 1 |
