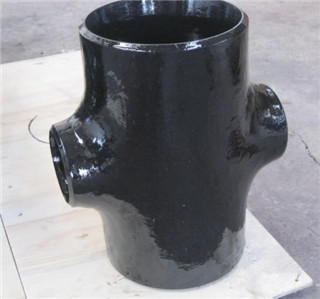

Butt Weld Carbon Steel Reducing Cross
Quantité : moq 50 pcs Prix : usd 99
| Details : | |||||||
| Nominal Diameter | Outside Diameter | Center to End | |||||
| D1 | D2 | ||||||
| DN | NPS | Series A | Series B | Series A | Series B | C | M |
| 15×15 | 1/2×1/2 | 21.3 | 18 | 21.3 | 18 | 25 | 25 |
| 15×10 | 1/2×3/8 | 21.3 | 18 | 17.3 | 14 | 25 | 25 |
| 15×8 | 1/2×1/4 | 21.3 | 18 | 13.7 | 10 | 25 | 25 |
| 20×20 | 3/4×3/4 | 26.9 | 25 | 26.9 | 25 | 29 | 29 |
| 20×15 | 3/4×1/2 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
| 20×10 | 3/4×3/8 | 26.9 | 25 | 17.3 | 14 | 29 | 29 |
| 25×25 | 1×1 | 33.7 | 32 | 33.7 | 32 | 38 | 38 |
| 25×20 | 1×3/4 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
| 25×15 | 1×1/2 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
| 32×32 | 1.1/4×1.1/4 | 42.4 | 38 | 42.4 | 38 | 48 | 48 |
| 32×25 | 1.1/4×1 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
| 32×20 | 1.1/4×3/4 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
| 32×15 | 1.1/4×1/2 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
| 40×40 | 1.1/2×1.1/2 | 48.3 | 45 | 48.3 | 45 | 57 | 57 |
| 40×32 | 1.1/2×1.1/4 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
| 40×25 | 1.1/2×1 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
| 40×20 | 1.1/2×3/4 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
| 40×15 | 1.1/2×1/2 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
| 50×50 | 2×2 | 60.3 | 57 | 60.3 | 57 | 64 | 64 |
| 50×40 | 2×1.1/2 | 60.3 | |||||
