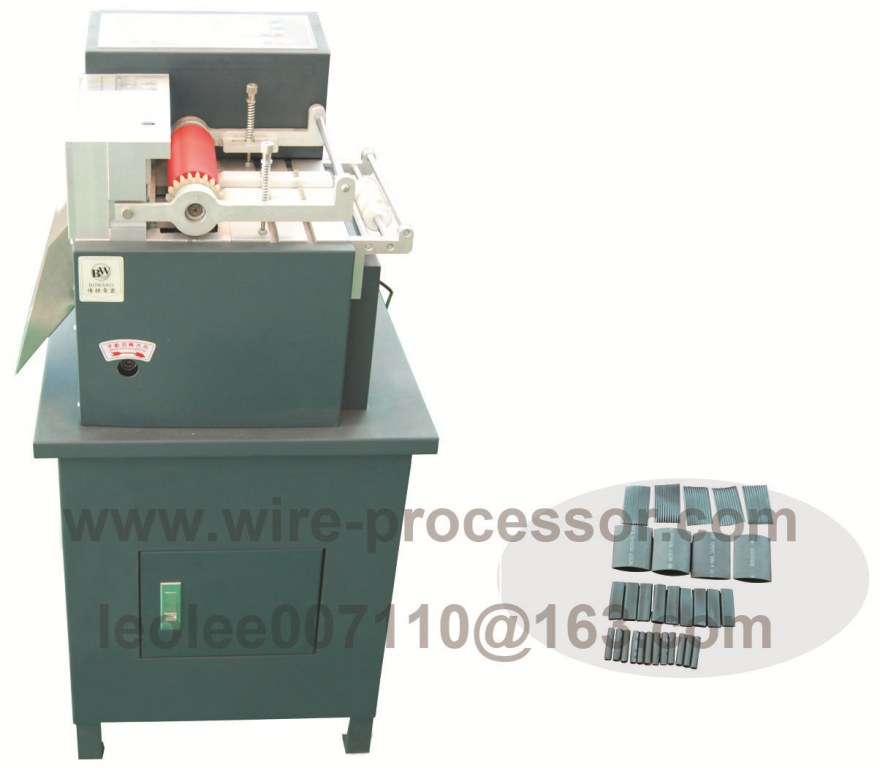

BW-160 Three dimensional digital and intelligent cutter
Product features
The machine uses all digital and intelligent control devices and operated by pressing button, it could set the parameters of cutting length/quantity and materials feeding speed. The cutting precision is high and less consumption, the design of The machine is complied with ergonomic principle with easy operation. It is widely applicable in the industries of electric materials (shielding materials, adhesive materials, insulation materials, conducting materials), jacket processing, wire processing i, automobile and motorcycle, rubber and plastic processing, woven tape, zipper, electric appliance, motor, light, toys, transformers, fashion and etc.
Usage
It is mainly used in cutting the fastening tape, veil tape, loosening tape, plastic tape, dual sticky tape, zipper, PVC jacket tubing, infusion tubing, heat shrinking jacket tubing, glass fiber tubing, Teflon jacket tubing, wire line, small electric wire, enameled wire, conductive fabric/foam, battery separating plate, electrode, diffusing sheet, reflecting membrane, nylar, insulation paper, self-adhesive paper, release paper, voice coil paper, PE, copper/aluminum foil, tinning copper tape, sheet metal and etc, which are precisely cut as per fixed inch and length.
Technical parameters:
1.Control device: DSP program main board
2.Voltage: AC215V – 235V ≤ 50hz,
3.Weight: 65kg
4.Displaying screen: 192 x 364 blue LCD
5.Power: 160w
6.Operating Model: the English and Chinese could be converted.
7.Feeding motor precision: each step 0.03mm
8.Total: 999999 pieces
9.Batch: 99999 pieces
10.Blade materials: DC53 Steel dragon
11.Rolling wheel pressure adjustment: have
12.Speed: 00-99
13.Pulse equivalent: adjustable
14.Cutting length: 0.2-99999.9mm
15.Cutting width:16px"margin-left: 10.5pt;"> 17.Remark: the customer should choose the suitable machine as per the material width, thickness, hardness and size.
