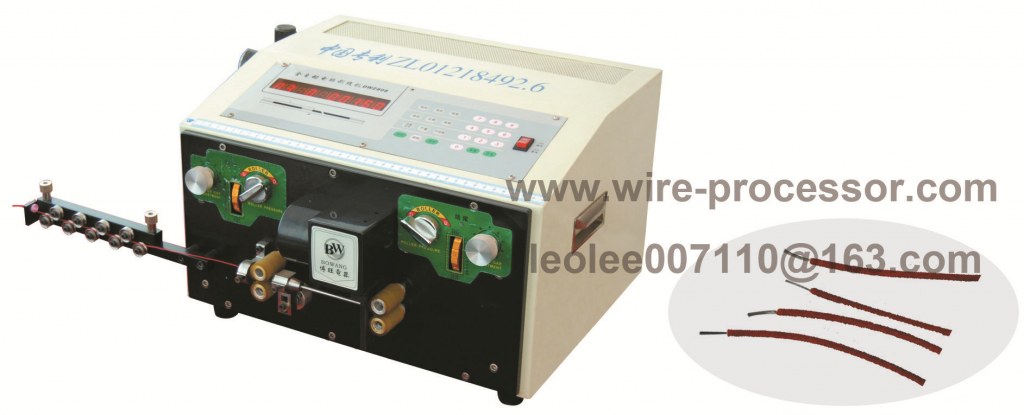

BW-808C Ultra fine wire computerized cutting and stripping machine

Product features

The device is controlled by computer and operated by pressing the button. The stripping speed is fast. Within the cutting range, the parameters of the length of wire, wire head, wire end and stripping could be set. It has the functions of auto quantified, bundle quantity, time postponed, middle part stripping and etc. which are stable in performance and convenient in operation.

Technical parameters:

1.Model: BW-808C (ultra fine wire)

2.Outer dimension: 420 x 335 x 255mm

3.Weight: 28kg

4.Display: digital display

5.Power supply: AC220V, 50Hz

6.Power: 80-220W

7.Cutting length: 1mm-15m

8.Middle stripping: 13 stripping positions in the middle.

9.Cutting tolerance: 0.002 x L mm (within) x L= cutting length

10.Wire head and end: 0-25mm

11.Applicable wire core area: 0.1 -6mm² (AWG 10-36#)

12.Max. Guide bushing diameter: 1-8mm

13.Blade materials: tungsten steel, hard alloy

14.Stripping capacity per hour: 5000-10000 pieces

15.Stripping quality: excellent

16.Spring pressure adjustment for wire: have

17.Wheel clamping pressure adjustment: have

18.Precision: one decimal point is 0.25mm

19.Drive: 4 wheels driving

20.Silicone wheel: extra equipped

21.Damage for the skin of wire: no

22.Speed adjusting rates: 0-9
