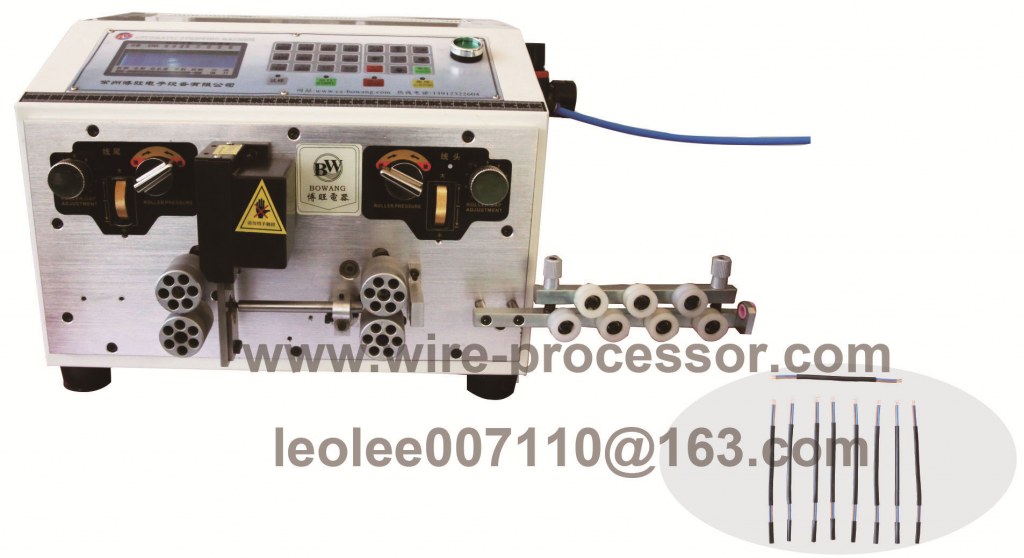

BW-882DP Computerized wire stripper (flat jacket model)

Product features

The device is controlled by computer and operated by pressing the button. The stripping speed is fast. Within the cutting range, the parameters of the length of wire, wire head, wire end and stripping could be set. It has the functions of auto quantified, bundle quantity, time postponed, 2 layers stripping and etc. which are stable in performance and convenient in operation.

Technical parameters:

1.Model: BW-882DP (flat jacket model)

2.Outer dimension: 420 x 297 x 345mm

3.Weight: 31kg

4.Display: Chinese or English interface on LCD screen.

5.Power supply: AC180-240V≦50/60Hz

6.Power: 120-220W

7.Cutting length: 1mm-99999mm

8.Middle stripping: 13 stripping positions in the middle.

9.Cutting tolerance: 0.002 x L mm (within) x L= cutting length

10.Stripping length: outer jacket (wire head: 0.1-250mm, wire end: 0.1-100mm)

Inner core (wire head: 0.1-50mm, wire end: 0.1-30mm)

11.Applicable wire core area: 0.1 -2.5mm² x 2 cores

12.Applicable wire: plastic, PVC, Teflon, glass linear materials. Flat 2 cores power jacketed wire

13.Max. Guide bushing diameter: 1.5-26 mm

14.Blade materials: imported high speed steel, tungsten steel

15.Drive: 4 Wheels driving

16.Stripping capacity per hour: 2000-6000 pieces

17.Precision for inlet and outlet motor: reactive stepping motor, each step is about 0.1mm

18.Remarked function: automatic pre-feeding and discharging, time setting for automatic starting, automatic shutdown while no wire or wire tangle.
