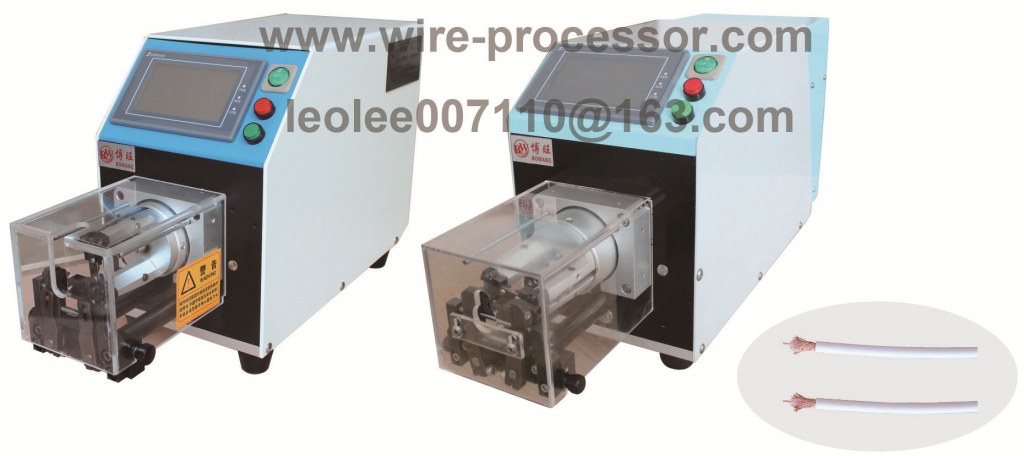

BW-886 Computerized coaxial cable stripper

Product features

It is especially used for processing the coaxial cable and special single wire, which uses advanced rotary blade frame to increase the processing precision and speed. It uses special axis positioning device and rotary blade, its max. Stripping layer is about 9 without changing the blade; it can process the wires in many dimensions.

Technical parameters

1.Model: BW-886

2.The max. Processing wire diameter: 6.99mm

3.The min. processing wire diameter: 0.81mm

4.Cutting depth: 0.01mm

5.The max. stripping length: 48mm

6.The max. stripping layers: 9 layers

7.Drive Model: motor/ball screw driving

8.Displaying: touching screen

9.Blade materials: 2 pieces, imported tungsten steel.

10.Clamping device: automatic centralized, motor driving, clamping force control

11.Capacity: 500-700 pcs/h (it depends on the type and length of the cable)

12.Machine starting method: manual/sensitive

13.Power supply: 220V/50hz

14.Power: 380W

15.Weight: 19kg

16.Outer dimension: 190 x 285 x 530 mm

17.Working environment: 50℃, Medium drying workshop, without vibrating working table
