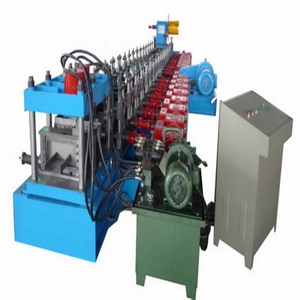

C steel roll forming machine

Quantité : 1 set   Prix : US $0 - 200,000/ Set

C steel forming machine

Quick Details

Place of Origin:

Wuxi, Jiangsu, China (Mainland)

Brand Name:

TUT

Model Number:

TUT-C

Roll forming machine:

C shaped purlin machine

Packaging & Delivery

Packaging Detail:

nude with waterproof cloth and stow-wood. Computer packed with waterproof cloth and card board

Delivery Detail:

30 working days

Specifications

C-shaped purlin is good in bending resistance, str tomatically, it is very easy and convenient

C Type Steel Roll Forming Machine

It can be used as bearing structure in big and med gars, gyms, exhibitions, theater and so on.

It consists of strip steel supporting frame, feedi g system, panel receiveing frame and so on.

Equipments components

Sheet coil supporting frame

Mterial-fed supporting frame

Automatic shearing mechanism

Hydraulic system

Material-flatten system

Computer control cabinet with imported PLC

Automatic length-measured and punching system

Automatic length-measured system

Finished products receiving tables

Processing flow

Hydraulic Uncoiler-Straightening-Roll forming M/C- pressing and cutting-Exit Rack-off charging

Technical parameter of stamping machine for C-shape steel:

Type and specification: C

Rolling range for the C shape steel purline:

Width: 80mm-300mm

height: 40mm-80mm

Dimensions: major structure: 9m*1.65m *1.2m

length of the assembly line: 20 -24m

diameter of the roll: 80mm thickness of the connecting plate: 20mm

Can make products with effective thickness: 2 mm-5mm

Facility weight : 7.0 t

productivity : 0-10 m/min

Rolling type: Adopt 10 rows of rollers(above and below) to pres s of upright rollers for adjusting at last.

Power of the machine: automatic type: 15KW

Feature of this producing line:

Low cost

High efficiency

Reliable working

Low energy consumption

Localisation : Donghu Industrial Park, Donghu Town, Xishan District, Wuxi, Jiangsu, China, 214000 wuxi,
Personne à contacter : Jean Sun, 86 0510 83793648
