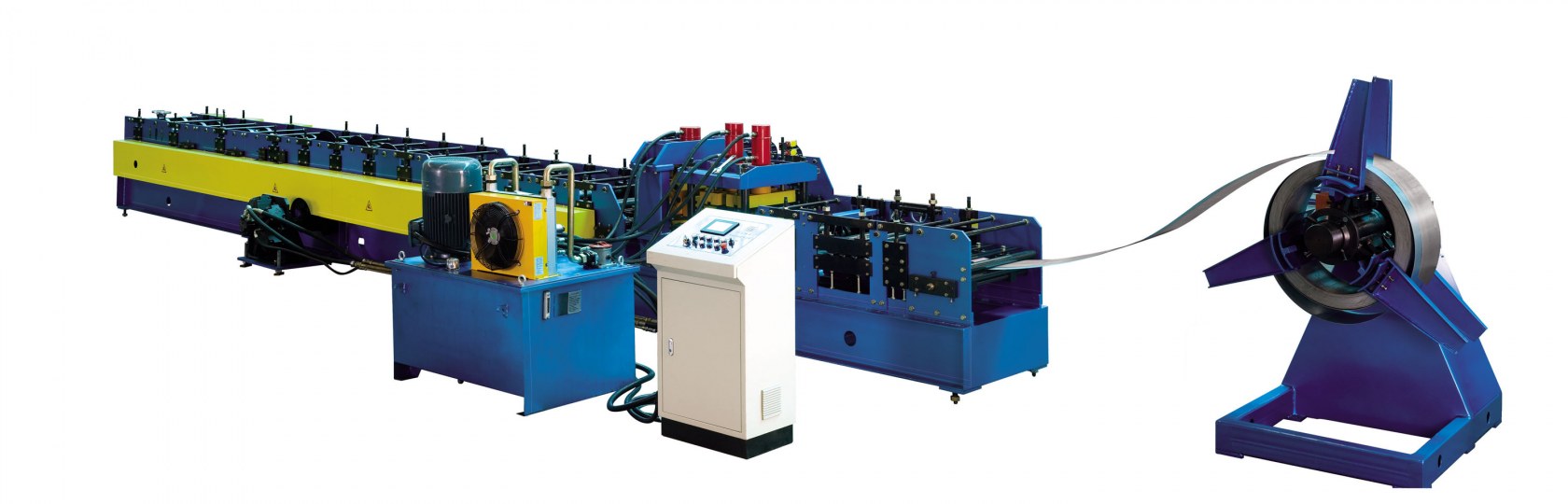

C/Z Purlin Roll Forming Machine
The C purlin machine can form hot/cold rolled metal strip through leveling, cold roll forming, punching and cutting off to produce C type or Z type purlin. Various specifications of purlin can be produced by changing the spacers.
The technical flow process of C purlin roll forming machine: decoiling → feeding steel strip → sheet leveling → punching to length → cut to length → roll forming → run out table.
With 53 years' experience, Jinggong is specialized in manufacturing high-quality C Z purlin roll forming machine, feel free to contact!
Technical Parameter Of C/Z Purlin Roll Forming Machine
Item |
Parameter |
||
Model |
HC-300 |
HZ-300 |
|
Profile |
C purline |
Z purline |
|
Purline specification |
80-300 |
||
Material |
Type |
Steel strip |
|
|
Thickness |
2.0-3.0 |
|
|
Yield strength |
230-345 |
|
Forming speed |
10-15 |
||
Roller material |
Bearing steel |
||
Roller driven type |
Chain transmission |
||
Controller |
PLC |
||
Operation |
Touch screen and button |
||
Hydraulic system pressure |
20 |
||
Hydraulic station motor power |
5.5 |
||
Main motor power |
18.5 |
||
Total power |
24 |
||
Total weight |
About 13000 |
Panel Drawings Of C/Z Purlin Roll Forming Machine
Jinggong is a professional purlin roll forming machine manufacturers, we provide c purlin machine china, z purlin machine china, c purlin roll former, construction materials equipment, sandwich panel lines and etc. Want to know c purlin roll forming machine price or more? Please contact us.
Personne à contacter : Wang Sue, 0575 84138681
