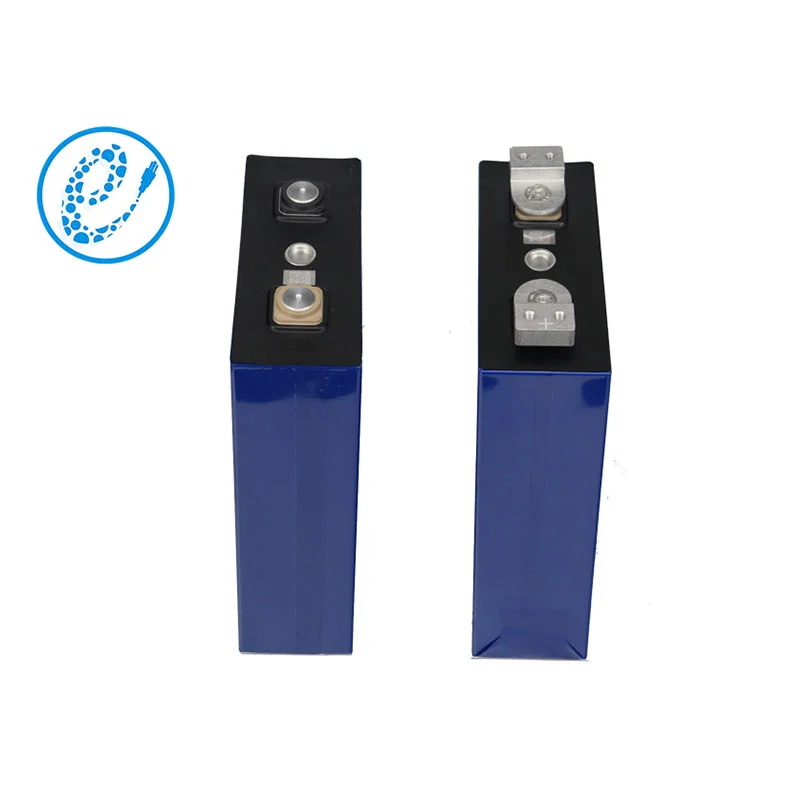

C2-LFP206WS
C2-LFP206W/S LiFePO4 is a high-performance lithium iron phosphate (LiFePO4) battery. This type lithium lfp battery offers high energy density, low self-discharge rate, wide temperature range and fast charging ability. It is designed for both stationary and mobile applications, providing reliable power over a wide range of temperatures. The electric excavator lithium ion battery is suitable for a range of applications, including electric vehicles, solar energy storage, and marine applications.
Specification of C2-LFP206W/S 206Ah LiFePO4
|
Item |
Specification |
|
|
Dimension (Welding terminal) |
53.8mm *174mm *207.1mm |
|
|
Dimension (Screw terminal) |
53.8mm *174mm *217.1mm |
|
|
Weight |
4±0.2kg |
|
|
Min. capacity |
206Ah (0.5C)@ 25℃ |
|
|
Min. energy |
663.22Wh (0.5C)@ 25℃ |
|
|
SOC window |
10~90% |
|
|
Terminal |
Welding/Screw terminal |
|
|
Impedance ( 1kHz) |
≤0.40mΩ |
|
|
Voltage |
Max. |
3.65V |
|
Nominal |
3.22V |
|
|
Min. |
2.5V（T＞0℃） 2.0V（T≤ 0℃） |
|
|
Current |
Standard charging current |
68.7A |
|
Standard discharging current |
68.7A |
|
|
Energy density |
Gravimetric |
165Wh/kg |
|
Volumetric |
342Wh/L |
|
|
Temp. Condition |
Operation (Charge) |
0~55℃ |
|
Operation (Discharge) |
-20~55℃ |
|
|
Storage |
0~45°C |
|
|
Self-Discharge Rate |
Count after fresh cell need Standard Chargeto 50%SOC and storage at 25+2°C for 3 months |
≤3% |
|
Cycle Life |
0.5C/1C,80% DOD 25℃ |
3000 cycles |
|
Abuse test |
Overcharge, Over-discharge, Short, Heat |
GB/T 31485-2015 |
There are many li ion battery manufacturers, but we are one of the best choices for you.
