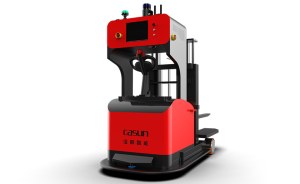

C5-P2 Balanced Forklift AGV
C5-Q2 is a balanced heavy laser navigation forklift AGV, AGV has no external legs, so there is no need to worry about the interference between the machine and the forklift legs when taking and placing materials. Load capacity is 1200KG, and lifting height is 2900mm.
Parameters of C5-P2 Counter Balanced Forklift AGV
Guidance |
Laser navigation |
Lifting height |
2900mm |
Dimensions |
L2716*W980*H1990mm |
Driving method |
Steering drive |
Traveling direction |
Forward, backward, 0~90 degree turn |
Charging method |
Auto charger(Side type) |
Load capacity |
1200KG |
Battery |
Lithium battery |
Travel speed |
0~72m/min |
Communication |
WiFi/5G |
Turn radius |
1500mm |
Safety alarm |
Sound and visual warning |
Guidance accuracy |
±10mm |
Safety detecting range |
≤3m(adjustable) |
Stopping accuracy |
±10mm |
Protections |
Front obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch |
Core Advantages of C5-P2 Counter Balanced Forklift AGV
01
Small volume, high lifting
AGV has no legs, has a small footprint and can lift up to roughly 2900mm, which is suitable for the operation environment with site area that is limited.
02
Up and down the elevator
The AGV can be linked with the ordinary elevator, with two forklifts in and out of the elevator at the same time, so as to greatly improve the operation efficiency.
03
Run across floors
Similar map across the floor of the scene operation, greatly meet the occasion of different floors of material transferringd.
04
Multiple devices linked
Many AGVs synchronize with each other, which applies to complex material handling scenarios.
05
Easy to use
It can realize the independent operation according to scheduling instructions, without manual intervention in the production process.
06
Fault self-test
Have good performance of fault self-check function, and own remote fault diagnosis and self-recovery function.
07
Auto-charge
Under the condition of low power, the AGV can directly go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.
08
Multiple security protection
Installed with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
As one of the most professional agv manufacturer, we provide automated guided vehicle for sale, slam mobile robot, slam navigation agv, agv car, etc. For agv robot price or more information, please feel free to contact us!
