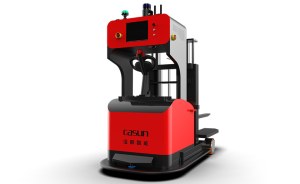

C5-Q2 Reach Forklift AGV
C5-Q2 is a forward-moving laser navigation forklift AGV. The gable fork can be telescopic to avoid the interference between the machine and the forklift legs when taking and placing materials.
Parameters of C5-Q2 Forward Forklift AGV
Guidance |
Laser navigation |
Lifting height |
2900mm |
Dimensions |
L2400*W1116*H2100(mm) |
Driving method |
Steering drive |
Traveling direction |
Forward, backward, 0~90 degree turn |
Charging method |
Auto charger(Side type) |
Load capacity |
1500KG |
Battery |
Lithium battery |
Travel speed |
0~72m/min |
Communication |
WiFi/5G |
Turn radius |
1800mm |
Safety alarm |
Sound and visual warning |
Guidance accuracy |
±10mm |
Safety detecting range |
≤3m(adjustable) |
Stopping accuracy |
±10mm |
Protections |
Front obstacle detection sensor+mechanical anti-collision bumper+emergency stop switch |
Core Advantages of C5-Q2 Forward Forklift AGV
01
Flexible operation and wide application range
Fork door frame can be telescopic as a whole, wide range of application
02
High lifting height
The lifting height can be up to 2900mm, with the door frame lifting device, which can take and put materials in a higher position.
03
Flexible deployment
Laser navigation, simple and flexible site layout.
04
Multiple devices are linked
Multiple AGVs synchronize with each other, which applies to complex material handling scenarios.
05
Easy to use
Independent operation according to scheduling instructions, without manual intervention in the production process.
06
Fault self-test
Have perfect fault self-check function, and have remote fault diagnosis and self-recovery function.
07
Auto-charging
When the power is low, it can go to the charging station for automatic charging. No manual intervention to achieve 24 hours of operation.
08
Multiple security protection
Equipped with laser obstacle detection sensor, mechanical anti-collision device and sound, light and voice warning to ensure safe operation.
As an agv producer, we provide automated guided vehicle for sale, slam agv robot, slam agv, agv for sale, etc.For robotic forklift cost or more information, please feel free to contact us!
