Capacitive Fingerprint Recognition Embedded Module

Features

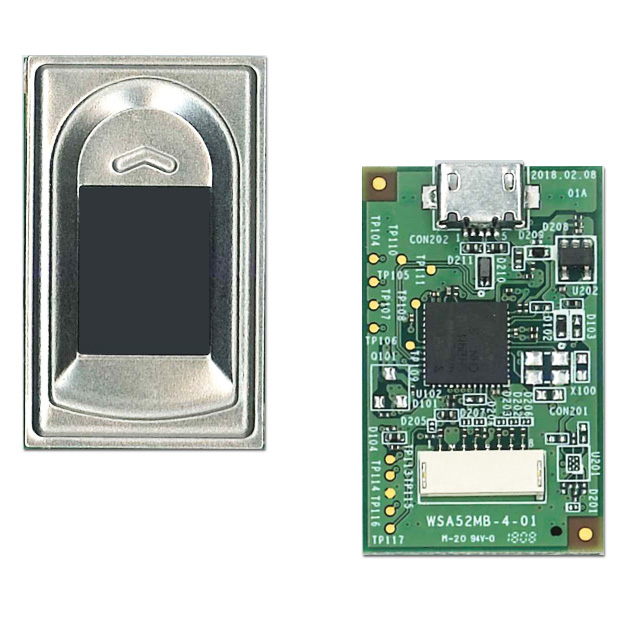

FPM-WSA52 capacitive fingerprint recognition module is a standalone solution with capacitive fingerprint sensor, algorithm processor and on-board template storage. As a total solution, FPM-WSA52 can be used standalone or connected to a host CPU over USB and UART. It can be widely applied in various fields such as access control systems, locks and safes, medical equipment, security applications and time & attendance.

SPECIFICATION

- MCU : ARM Cortex M4 Core (ST STM32F401)
- Resolution : 508 DPI
- Sensing Area : 14 x 11mm
- Sensor Type : Capacitance Type
- Interface : USB 2.0, UART
- Authentication : Verify (1: 1) or Identify (1: N)
- Hardness / Surface : Up to 8H / Cermet-like Coating
- FAR / FRR : < 0.001% / < 1%
- No. of Placements : > 2.5 million finger placements
- Power input : 5VDC
- Anti-ESD : HBM Air Discharging +/-15KV
- Pixel matrix / Color : 192 x 192 pixels / 256 true gray scale values
- Quantity of Stored Fingerprint : 200 pcs
- Connector Type : 8 pin, 1mm pitch FPC connector; Micro USB connector
- Environment : Operating Tem 20 ~ 60o C / < RH 90%
Storage Temp. -20 ~ 85 o C / < RH 90%
- Module Dimension : 20.4 x 33.4 x 4.75mm (W x L x T)
- Weight : 3.3 gram
