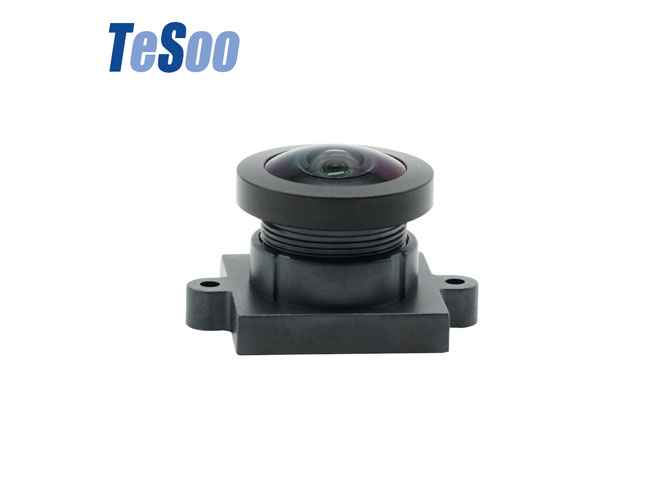

Car Camera Lens

PART No.

TS-4013T-A00

TTL

14.11mm

EFL

0.83mm

F/NO

2.0

MBFL

1.69mm

SENSOR SIZE

1/4''

1/3''

FOV

FOV

(D)

195°

195°

(H)

195°

195°

(V)

158°

190°

DISTORTION(F-θ)

＜30%

＜30%

MAX IMAGE CIRCLE

φ3.68mm

Mount

M12*0.5

CONSTRUCTION

2G4P+Plastic

IP Rating

IPX7 or IP69K

DIAMENSIONS

φ14/16*12.42

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2913U-A00

TTL

13.2mm

EFL

1.35mm

F/NO

2.0

MBFL

2.20mm

SENSOR SIZE

1/2.9''

1/2.7''

FOV

FOV

(D)

215°

215°

(H)

215°

215°

(V)

130°

140°

DISTORTION(F-θ)

＜-20%

＜-20%

MAX IMAGE CIRCLE

φ4.70mm

Mount

M12*0.5

CONSTRUCTION

All Glass +Metal

IP Rating

IPX7 or IP69K

DIAMENSIONS

φ14/16*11

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2717O-A00

TTL

16.81mm

EFL

3.20mm

F/NO

2.2

MBFL

3.68mm

SENSOR SIZE

1/3''

1/2.7''

FOV

FOV

(D)

128°

150°

(H)

105°

118°

(V)

54°

60°

TV-DISTORTION

＜-26%

＜-32%

MAX IMAGE CIRCLE

φ6.90mm

Mount

M12*0.5

CONSTRUCTION

All Glass +Metal

DIAMENSIONS

φ14*13.13

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2716G-A08

TTL

15.69mm

EFL

5.60mm

F/NO

2.6

MBFL

6.24mm

SENSOR SIZE

1/3''

1/2.7''

FOV

FOV

(D)

64°

71°

(H)

50°

57°

(V)

38°

42°

TV-DISTORTION

＜-5%

＜-6.5%

MAX IMAGE CIRCLE

φ6.80mm

Mount

M7*0.35

CONSTRUCTION

All Glass+Metal

DIAMENSIONS

φ8.1*9.45

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃

PART No.

TS-2721F-A00

TTL

21.43mm

EFL

6.50mm

F/NO

2.0

MBFL

6.55mm

SENSOR SIZE

1/2.7''

1/2.5''

FOV

FOV

(D)

59°

64°

(H)

48°

51°

(V)

34°

40°

TV-DISTORTION

＜-8%

＜-12%

MAX IMAGE CIRCLE

φ8.80mm

Mount

M12*0.5

CONSTRUCTION

All Glass +Metal

DIAMENSIONS

φ14*15.45

Operating temp.

-40 ~ +85℃

Storage temp.

-40 ~ +90℃
