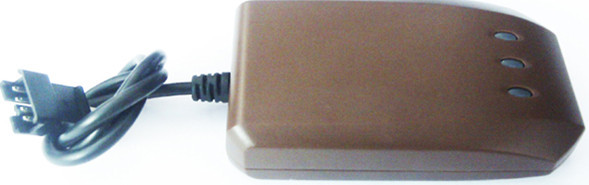

Car Tracking Device (TLT-2K) (Super Power-Saving)

The TLT-2K Car Tracking Device is a remote positioning device with build-in GPS and GSM/GPRS module. You can have the user's coordinate information through cell phone message to locate the tracker on Google Map or other map software; in addition, you can also track the real-time location and historical movement on the internet after the device upload the data to the specified server.

This item mainly used for motorcycle, electric golf car, ordinary private car etc. This item is with built-in antenna and easy to instal.

Features:

1. Built-in high-performance GPS chipset (U-BLOX) enables the product to provide accurate positioning even with weak signal and to work normally in urban area, valley or other sight-limited district.

2. Built-in GSM/GPRS module supports GSM900/1800MHz (850/1900 MHz), thus it can work throughout the world.

3. It supports SMS communications or GPRS TCP connection, and receives position information through cell phone message or used to look into movement track on internet.

4. It provides such functions as SOS, fuel/electricity shut-off (optional), warning by cutting off external power wire, geo-fence function, overspeed warning, historical data upload, parking throttle upload and moving vehicle tracking timing upload.

5. It has power-saving function and its waiting call time is improved in electricity-saving mode.

6. It is equipped with highly reliable electric circuit design and complies with electronic industry standard.

Specification:

GSM Module: MTK GSM/GPRS chipset,GSM 900/1800 double frequency, or GSM 900/1800/850/1900 quad-band frequencies (optional),supports TCP protocol
GPS Chipset: U-BLOX GPS chipset with high sensitivity
GPS Sensitivity: -160dB
GPS Frequency: L1,1575.42MHz
Code: C/A code
Channel: 50-channel and all-in-view tracking
GPS Position Accuracy: <2.5m, CEP<br /> Speed Accuracy: 0.1m/s
Time Accuracy: 1us and synchronized to GPS time
Coordinate: WGS-84
Cold Start: 32s on average
Hot Start: 1s on average
Warm Start: 30s on average
Reacquisition: 1s on average
Altitude Limit: 18,000 meters (60,000feet)
Velocity Limit: 515 meters/second (1000knot)
Acceleration Limit: less than 4g
Working Temperature: -25°C to 70°C
Humidity: 5% to 95%, non-concretion
Dimension: 88mm*51mm*19mm
Voltage: 12V-24V

Accessories: power wire, SOS line, battery, instruction manual disc

Packaging : individual box, 50 pieces each carton, the carton's size is 61.5cmX42.5cmX26cm, the weight is 15.5KG

Certification: FCC (UOKVSUN20111229000), CE (B12040212), ROHS (RSZ120116D0002E)
