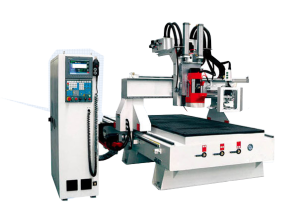

Carousel Type ATC CNC Router

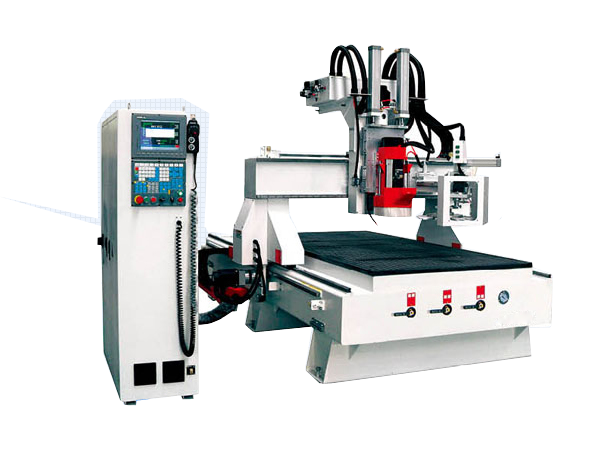

Carrousel Type ATC CNC RouterStandard features of carrousel type ATC CNC router Working area: 1300*2500*300mm Heavy duty structure with 8mm thickness steel Italy HSD 9.0kw air cooling spindle with auto tool change Japan servo motors and drivers Delta inverter Original Taiwan Syntec the best controller Schneider Electronics from France Omron limited switch from Japan T-slot & vacuum combination table Taiwan TBI ball screw Professional tool box oil injection system Tool sensor Powder coating technology to avoid damageSpecification for carrousel type ATC CNC router: NumberDescriptionParameter1X,Website: http://www.chinalasercnc.com,Y,Z Working Area1300x2500x200mm2Table Size1550 3050mm3X,Y,Z Traveling Positioning Accuracy0.034X,Y,Z Repositioning Accuracy0.05mm5Table SurfaceVacuum and T-slot Combined(Option: T-slot table)6FrameWelded structure7X, Y StructureRack and Pinion8Z StructureBall Screw9Max. Power Consumption(Without Spindle)4.5kw10Max. Rapid Travel Rate45000mm/min11Max. Working Speed30000mm/min12Spindle Power9HW HSD air cooling,13Spindle Speed0-18000RPM14Drive MotorsYaskawa servo15Working VoltageAC 380V/50HZ 220V/60HZ ,3PH16Command LanguageG Code and M Code17Operating SystemSyntec Control System18Computer InterfaceUSB and Ethernet19Flash Memory2G (with U disk)20ColletER3221X,Y Resolution0.03mm22Software CompatibilityType3 software , Artcam software23Running Environment Temperature0 - 45 Centigrade24Relative Humidity30% - 75%25Packing Size3840*2210*2200 mm26N.W.1700KG27G.W.2000KGSample picture:
