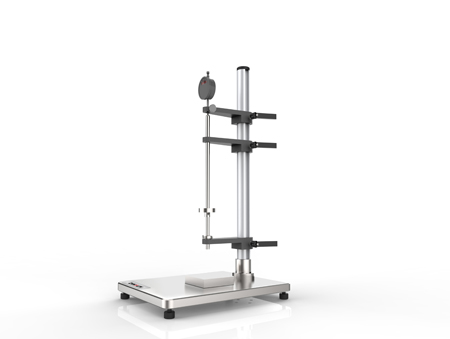

Carpet Tile Thickness Gauge
000mm2 can be testedon this unit. Additional sizes are available on request.
The tile is mounted on a rigid steel sample plate with raised edge guides, readings are taken at each corner.
An optional data recorder(TTG: DTA) is available, which calculates mean values of readings.
Testing method:
- Plate the sample on the fixed lower plate with the usage side upwards and lie flatly. Slowly down the upper plate with a horseshoe located on its center position until contact with the sample.
- The pile thickness can be read directly from the digital gauge after applying a standard pressure for 5s.
- Test 5 specimens in each sample unless otherwise specified.
- Record the measured value of each specimen with an accuracy of 0.01mm.
Standard Accessories:
| Structure of test sample | Diameter of upper plate | Test area | Applied weight | Pressure |
| Solid | 8.00 ± 0.05mm | 50mm2 | 0.40±0.02kg | 80kpa |
| Un-solid at least in on layer | 25.3 ± 0.1mm | 500mm2 | 0.20±0.02kg | 4kpa |
| Rubber and elastic materials | 50.0 ± 0.2mm | 2000mm2 | 5.0±0.1kg | 25kpa |
| Composition cork | 11.3 ± 0.05mm | 100mm2 | 0.80±0.02kg | 80kpa |
Technical Paremeters:
- Thickness gauge: digital;
- Weight of horseshoe: 500g;
- Lower plate: ≥15cm2;
- Upper plate: specifications of 8mm, 11.3mm, 25.3mm, 50.0mm, a set of 4;
- Standard weight: specifications of 0.2kg, 0.4 kg, 0.8 kg, 5 kg, a set of 4;
- Outside dimensions: 300×400×550mm(L×W×H);
- Weight: 20kg.
