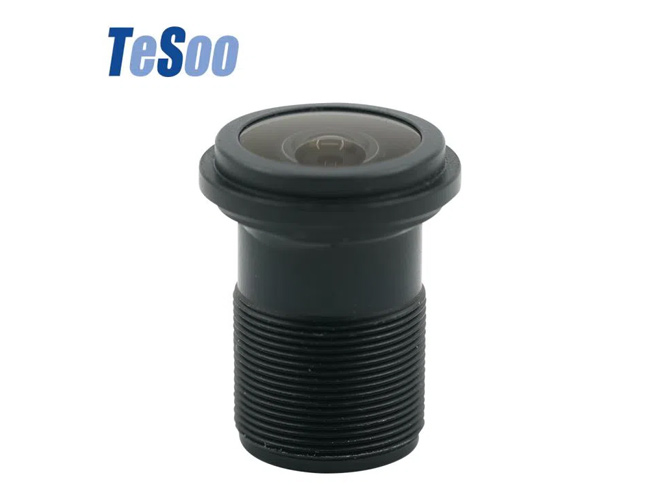

CCTV 12mm Lens
Tesoo 12mm cctv lens not only extends the focal length of a camera but also amplifies its angle of field. The sensor size of the CCTV 12mm lens is 1/2.7''. TTL: 21.7/21.8mm. EFL: 3.0mm. F.NO: 1.8. THREAD: M12*0.5. Get 12mm CCTV lens price now!
Application of CCTV 12mm Lens
150 degree lens for vehicle recorder, automotive camera, car recorder lens, car DVR lens, car black box lens, car front view camera lens
CCTV camera lens, CCTV lens, lens for Smart home doorbell video, CCTV security camera lens
Drone lens,sports camera Lens,sports DV lens,lens for aerial photograph
lens for smart home doorbell video, lens for monitoring system, law enforcement recorder lens
Scanner lens, inspection lens, bar code/QR code scanning, etc
Hot Tags: 150 degree lens, China, manufacturers, suppliers, factory, customized
Specifications of CCTV 12mm Lens
Highly advanced automotive equipment and testing devices.
Strong and experienced R&D team.
Strict quality control system. We have passed ISO9001 and strictly followed the principle in each process.
Stable supply ability, producing more than 9 million pcs lens per year.
|
PART No. |
TS-2723D-A00 |
|
|
TTL |
22.89mm |
|
|
EFL |
12.0mm |
|
|
F/NO |
2.0 |
|
|
MBFL |
7.12mm |
|
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
FOV |
FOV |
|
|
(D) |
41° |
44° |
|
(H) |
38° |
40° |
|
(V) |
22° |
23° |
|
TV-DISTORTION |
＜-2.2% |
＜-3% |
|
MAX IMAGE CIRCLE |
φ6.90mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All glass+Metal |
|
|
DIAMENSIONS |
φ14*15.77 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
Features of CCTV 12mm Lens
150 Degree Wide Angle
Widely Applied in Car Black Box, Car Dvr, Dash Camera, Car Camera, Car Recorder, Etc.
Around 120 Degree Hfov
M12 Mount
Iso9001/rohs/sgs Cetificated
Diameter: φ14、φ17，φ25 Available, can Also Be Customized
Fast Delivery
Advantages of CCTV 12mm Lens
Highly advanced automotive equipment and testing devices.
Strong and experienced R&D team.
Strict quality control system. We have passed ISO9001 and strictly followed the principle in each process.
Stable supply ability, producing more than 9 million pcs lens per year.
