CE Certified Drum Type Wood Chipper
Quantité : 1 Prix : USD500-USD80000

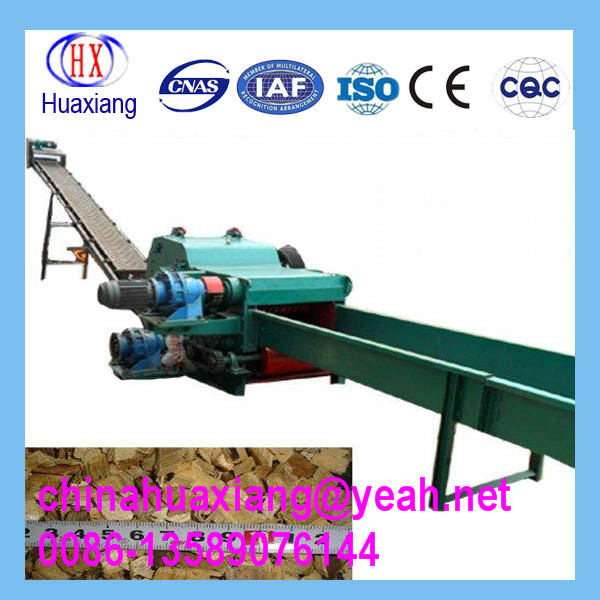

1.Introduction of CE Certified Drum Type wood chipper machine
1.The CE Certified drum type wood Chipper is special for producing wood chips. The wood chipper is widely used in particleboard plant, high-density fiberboard factory, stubble factory, biomass power plant, w ood chip plants etc
2. The CE Certified drum type Wood Chipper mainly applicable for woods & non-wood raw materials (such as sugar cane, reeds, bamboo, etc.), processing residues (such as branches, branches, slab, planks, logs core, veneer waste).
3. The CE Certified drum type Wood Chipper consists of machine body, knife roller, upper and lower feed rollers, conveyor belts,
hydraulic systems and other components.Body is welded by high strength steels,thus the whole base is stable.
4.The knife roller installed with two, three or four flying knives and fixed knives.Pressure block fixed the knives on the knife roller. According to the different size
of the cutting material, the upper feed roller assembly can fluctuate within a certain range by a hydraulic system.Qualified flakes can be cut off and passed through the screen mesh then discharged from the bottom, large flake materials will still be cut inside t he machine.
3. Dedicated biomass power plant large crusher and wood chipper.(wood crusher)
2.Technical parameter of CE Certified Drum Type wood chipper machine
|
MODEL |
GX215 |
GX216 |
GX218 |
GX2113 |
|
Feeder Size |
160*400 |
230*500 |
300*680 |
450*700 |
|
Max in-feed Diameter |
160mm |
230mm |
300mm |
450mm |
|
Main Power |
45kw |
55kw |
110kw |
200-250kw |
|
Flying knives |
2 pcs |
2 pcs |
2 pcs |
2 pcs or 3pcs |
|
Chips size |
30mm |
30mm |
30mm |
30mm |
|
Capacity |
3-4 T |
7-8 T |
12-15 T |
15-30 T |
|
Feeder Power |
2.2-3 |
3-4 |
4-5 |
7.5*2 |
|
Oil pump power |
1.5*1 |
1.5*1 |
1.5*1 |
3*1 |
|
Weight (kg) |
2990 |
4070 |
7000 |
11840 |
Personne à contacter : Wei Zhang, 0086 13589076144
