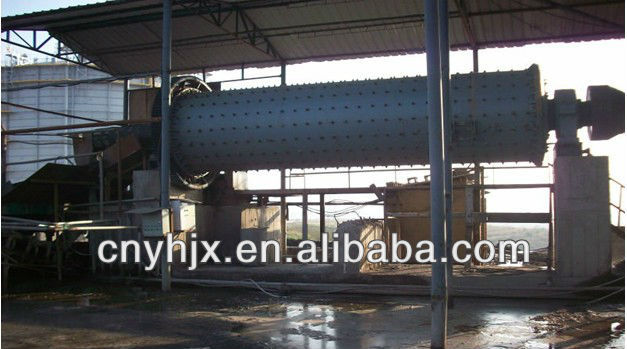

Cement powder ball milling machine
Détails
Chine (Rép. pop) Biens d'équipement
Biens d'équipement

Cement powder ball milling machine

Quantité : 10 Set/Set   Prix : 15 000,00 €

Cement powder ball milling machine

Working Principle of Superfine Ball Mill Production Line LHM:

1. Material feeding: After the materials are roughly crushed, they will be fed into the ball mills.

2. Impact grinding: when the milling chamber is rotating at high speed, grinding medium and grind-need materials, which are also rotating, will impact with each other; thus to achieve impact grinding for materials;

3. Classification: after the materials are crushed, they will be discharged into self-diffluent classifiers. And then the relatively coarse and fine powders will be separated. Qualified powders will be collected; and u nqualified powders will be re-crushed.

Note: We have prepared two sets of ball mill production lines in our factory to do any industrial testing !

Main parameters of the ball milling machine:

Model

Cylinder rotary speed

(r/min)

Loading ball weight

(t)

Input size

(mm)

Discharge size

(mm)

Capacity

(t/h)

Motor power

(kw)

Weight

(t)

Ø900×1800

39

1.5

≤20

0.075-0.89

0.8-2

18.5

4.6

Ø1200×3000

36

3.5

≤25

0.074-0.4

1.6-5

37

12.8

Ø1200×4500

32

5

≤25

0.074-0.4

1.6-5.8

55

13.8

Ø1500×3000

27

7.5

≤25

0.074-0.4

2-5

75

15.6

Ø1500×5700

28

12

≤25

0.074-0.4

3.5-6

130

24.7

Ø1830×3000

25

11

≤25

0.074-0.4

4-10

130

28

Ø1830×6400

24

21

≤25

0.074-0.4

7-16

210

34

Ø1830×7000

24
