Central Control Unit
Speaking time limit can be preset for conference systems; After the speaking time is up, the conference unit will be off
Conference audio recording and video recording(need audio video capture card)
Delegate units can be set to be vice-chairman units by software; the vice-chairman unit is not subject to active mic limit
Support management software dual-system hot backup function; One control computer can be set as backup and connect to the system; if the current computer has faults, the backup computer can be automatically hosted to ensure a smooth and continuous meeting
Conference management software can be customized

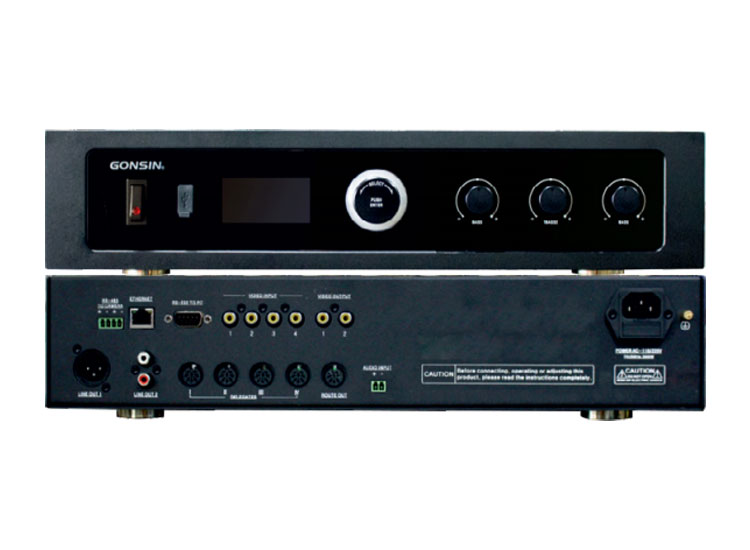

Central Control Unit Gonsin TL Z4
Based on functions of Central Control Unit TL-Z4, Central Control Unit TL-ZB4 has functions below: Extended functions under PC and software control
Voting: Yes, No, Abstain. Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election', and 'quick election'
4-key evaluation: Good, Fair, Poor, Abstain
Utilize multi-level error correction and data encryption techniques to ensure information security
Customized voting options and voting methods, support customized language mode or display screen
Central Control Unit TC-Z4
Based on functions of Central Control Unit TL-Z4, Central Control Unit TC-Z4 has functions below:
Language interpretation: 1+5 channels
Acoustic frequency response can be up to 20Hz~20KHz
With an interpreter unit and language distribution port, it can connect Gonsin IR simultaneous interpretation system or FS-FHSS wireless simultaneous interpretation system for compatible use
Central Control Unit TC-ZB4
Extended functions under PC and software control
Voting: Yes, No, Abstain. Vote counting and result display are enabled automatically by PC
- Single-choice and multiple-choice voting
- First key-press and final key-press voting
Election: elect one or more out of N candidates, with 'competitive election', 'equal number election' and 'quick election'
4-key evaluation: Good, Fair, Poor, Abstain
Utilize multi-level error correction and data encryption techniques to ensure information security
Customized voting options and voting methods, support customized language mode or display screen
Language interpretation: 1+5 channels
Acoustic frequency response can be up to 20Hz~20KHz
With an interpreter unit and language distribution port, it can connect Gonsin IR simultaneous interpretation system or FS-FHSS wireless simultaneous interpretation system for compatible use
|
Max System Capacity |
4096 |
|
Standard Capacity |
60~70(different from various models) |
|
Acoustic Frequency Response |
20Hz~20KHz |
|
SNR |
>96dBA |
|
Channel Isolation |
>85dB |
|
Dynamic Range |
>94dB |
|
THD |
<0.05%</span> |
|
Power |
AC100~240V |
|
Audio Port |
1 balanced (XLR)/ 2 unbalanced (RCA) |
|
Max Audio Output |
LINE OUT: +20 dBu unbalanced |
|
BLANCE OUT: +20 dBu balanced |
|
|
Output Impedance |
>1KΩ |
|
External Audio Input |
0.775V (PHOENIX terminal) |
|
Central Control Method |
RS-232 |
|
PC Connection Method |
TCP/IP |
|
Camera Control Method |
RS-485 |
|
Max Power Consumption |
300W |
|
Terminal Connection Port |
8-pin×4 |
|
13-pin×4 (for TC-Z4, TC-ZB4 only) |
|
|
Channel selection |
6 (for TC-Z4, TC-ZB4 only) |
|
Display Screen |
OLED (61mm×37mm) |
|
Audio recording port |
USB (USB |
|
Audio recording File Size |
0.8M/m |
|
Active Delegate |
1/2/3/4 (not including chairman unit) |
|
VOX sensitivity |
H/M/L (76dB/80dB/82dB) |
|
Support Camera Number |
4 SD cameras (built-in SD matrix), MAX 8 cameras with extended matrix |
|
Video Input Port |
RCA×4 (1Vp-p 75Ω) |
|
Video Output Port |
RCA×2 (1Vp-p 75Ω) |
|
Camera Tracking Protocol |
PELCO-P/PELCO-D/VISCA |
|
Operating Temperature |
-0~45°C |
|
Storage Temperature |
-20~50°C |
|
Dimensions (L*W*H) |
485mm×350mm×90mm |
|
Installation |
Desktop or 19" rack mounting |
|
Weight |
7.6Kg |
Now the price of china conference system is reasonable, if you have needs, please contact us.
