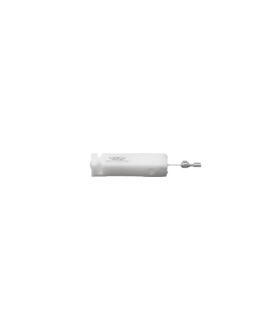

Ceramics Syringes

The 20XX series precision ceramics syringe is self-developed by Keyto and its main function is to achieve achieve aspiration and dispensing with precise dosing. The syringe has a very high repeatability precision(CV) and accuracy of aspiration and dispensing. It is a high performance, low cost, maintenance free precision syringe with service life of over 3 million cycles for the μL class and over 2 million cycles for the ml class without compromising accuracy and precision.

Reasons to Buy Keyto Ceramics Syringes

01

Available in eight syringe volumes

Available in eight syringe volumes from 50uL to 10mL.

02

Extremely high and stable dosing aspiration and dispense accuracy

Extremely high and stable dosing aspiration and dispense accuracy over the life cycle of the pump. The following table shows the CV when tested with deionized water as the medium.

03

Full stroke

Full stroke: 60mm.

04

Maintenance-free

Advanced zirconia ceramic plunger machining technology, rigorous inspection procedures, and unique sealing solutions that ensure maintenance-free over the life cycle of the ceramics syringes.

Aspiration and dispense volume as a percentage of total volume

CV

Accuracy

≥2%

＜1.5%

＜2.0%

05

Good chemical resistance and high wear resistance

Good chemical resistance and high wear resistance of the materials of the components in contact with the reagents:

(1)Syringe chamber material: POM(Nominal), Teflon (PTFE) and other polymer materials are optional on request.

(2)Plunger material: zirconia ceramic, stainless steel metal are optional.

For more information about miniature proportional valves and fluid control engineers, please feel free to contact us!
