Changjiang250cc Classic Millitary Motorcycle Sidecar Bike

ITEM DESCRIPTION

1. Model Number: CJ750B

2. Material: iron, painted

3. Style: Classic military theme

4. Color: matted black

5. Engine: 750cc

6. Customization: is welcomed, we can do patterns on car body

7. Available Colors: any color

8. MOQ: 1 piece

9. Optional capacity: we can change the engine with 250cc, 300cc, 350cc, 750cc

10. Optional Equipment: two ammo cans, blackout lamp, gun rack, disc brack, BWM-R71 fuel tank, spare fuel tank, small tool box

REMARK

1. Because of different monitors and brightness, there may exists tiny color difference.

2. Items will be insured from damage during transport from our factory to the destination port. If you want the items shipped to your house, please contact us.

3. We are not responsible for any duties, taxes, or additional charges that may be charged by Customs for any International deliveries.

4. There are two optional packing methods.

1) Wooden box packing

Cargo is Packed with un-fumigated wooden box.

SHIPMENT

We ship the item by sea generally, if you have other ideas please cantact us.Customized items will be shipped in 15 work days on payment received. Please make sure the shipping address is correct. We are not responsible for wrong address.

For detailed shipping costs, please contact us.

Price terms

This car can't send express, need normal customs clearance, The costs(4919US$) include: steel tower packing, into the storage fee, customs clearance fee, 17% of the value-added tax(836).Sea freight are different from places , please contact us according to the country to modify the freight.

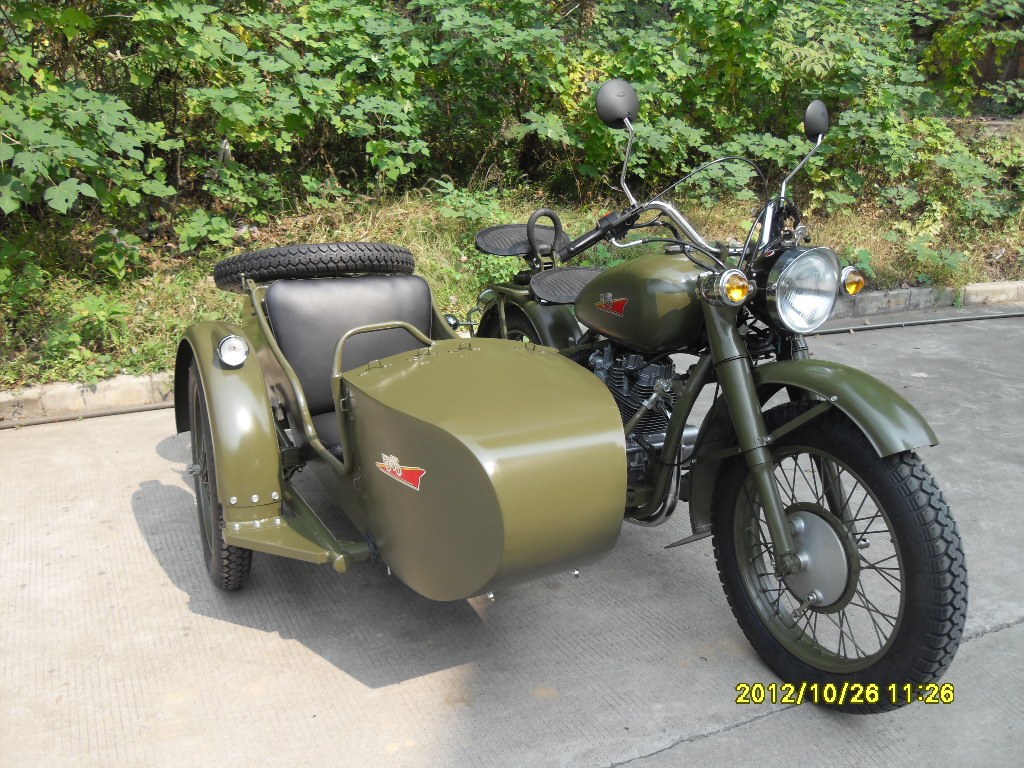

250 (3).JPG

250 (2).JPG

250 (7).JPG

250 (1).JPG

250 (4).JPG

Packing Detail

Rolled with a plastic paper into a cube steel shelf, and then covered by steel net.

Weight after packing: 460kg/piece

Size after packing: 2200×1600 × 1270mm3

Optional Kits

Technical Data

Model

category

250CC

1

performance criterion

Brake distance

≤8m

Top speed

≥85KM/H

MIN steady speed

≤25KM/H

gradeability;

≥15°

Economic speed

50KmH

Economic speed fuel consumption

≤2.6L/100Km

2

Vehicle size and quality parameters

Dimensions (mm)

2230 ×1590 ×1000

wheelbase(mm)

1492

Fore-and-side wheelbase(mm)

1147

tread(mm)

1175

Min ground clearance (mm)

140

Dry weight (kg)

320

Max payload(kg)

220

3

The engine and the ignition system

engine

250CC

type

Four stroke air cooling vertical single cylinder

Total displacement(ml)

249.9

Cylinder diameter*stroke(mm)

68×68

Compression ratio

10.3: 1

Max power and its corresponding speed

12.5KW/6500±500r/min

Max torque and its corresponding rotary

22N.m/5000r±500r/min

Gear position primary

3.89 (74/19)

No1 Gear position

3.000(36/12)

No. 2 Gear position

1.880(32/17)

No. 3 Gear position

1.400(28/20)

No. 4 Gear position

1.130(26/23)

No. 5 Gear position

0.960(24/25)

Rear drive ratio

1.350(27/20)

Starting mode

Kick &Electric

Way of ignition

C.D.I non-contact ignition

Spark plug type

CR7E

Spark plug clearence (mm)

0.6~0.7

Valve clearence

Cold state: The intake valve 0.10 mm, exhaust 0.15 mm

4

Drive system

Cluth

Manual Wet Multi-Plate

Tyre size (inch)

3.75—19

Tyre pressure(kpa)

Front wheel 250±20kpa,rear wheel 335±20kpa,side wheel 350±20kpa

Brake pattern

The front brake: drum handbraking rear brake: drum footbraking

Kind of drive

Shaft drive transision

5

Electrical system

Rated voltage

12V

Storage battery

6QA28

Generator type

Flywheel rotor

starting relay

JN3—12

Headlamp

12V60/55W

Cornering lamp

12V20W

taillight

12V20/8W

Electric hom

12V,≤3A

6

others

Engine shape dimension

505×395×415

Engine weight

42Kg±1Kg

Oil pump type

Internal meshing rotor

lubrication type

combined force-feed and splash lubrication

exhaust contaminant

CO≤4.5,HC≤1200ppm

ignition advance angle

Before BDC 29°(≤4500r/min)

Product Catalogue

1)125CC, 200cc, 250cc,300cc, 350cc, 600cc, 750cc sidecars
2) electric sidecars/cars/KAINDUDU sidecars
3) 250cc engine, 650CC ,750cc engines.
4) sidecar/motorcycle accessories and parts.
