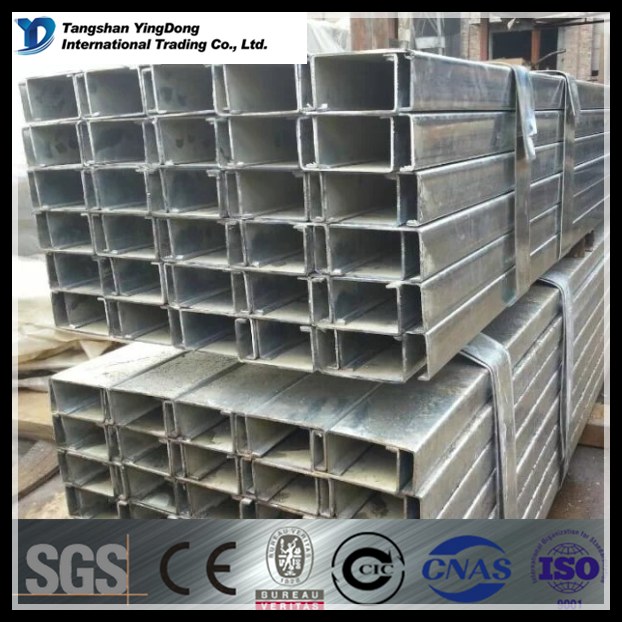

Channel Steel
U Channel Steel
hot rolled channel steel, U shaped
1.Detail information of C channel steel.
Height: 80-400mm Thickness: 1.5-3.0mm
Length: As customers' requirements.
Material: Q195/Q235/Q345/SS400/S235JR Surface: Painted or Galvanized.
Punch: Can be punched as customer's drawing
2.Application
purlin and wall beam of steel structure building
The C-shaped purlins have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
3.Advantage< /span>
(1). Design according to customers' requirements
(2). Manufacture under complete quality control system---ISO9001&SGS
(3). Installation with instruction of experienced engineers
(4). Easy to assemble and dismantle
(5). Eco-friendly material: can be used for several times and can be recycled
(6). Shorter construction period, longer using time
(7). High strength and stiffness, high weight bearing.
4. Common specification
|
U channel |
||
|
model |
model |
weight/m(kg) |
|
50*37*4.5 |
5# |
5.44 |
|
63**40*4.8 |
6.3# |
6.635 |
|
65*40*4.8 |
6.5# |
6.7 |
|
80*43*5 |
8# |
8.045 |
|
100*48*5.3 |
10# |
10.007 |
|
120*53*5.5 |
12# |
12.06 |
|
126*53*5.5 |
12.6# |
12.37 |
|
140*60*8 |
14#A |
14.53 |
|
140*60*8 |
14#B |
16.73 |
|
160*63*6.5 |
16#A |
17.23 |
|
160*65*8.5 |
16#B |
19.755 |
|
180*68*7 |
18#A |
20.17 |
|
180*70*9 |
18#B |
23 |
|
200*73*7 |
20#A |
22.637 |
|
200*75*9 |
20#B |
25.777 |
|
220*77*7 |
22#A |
24.999 |
|
220*79*9 |
22#B |
28.453 |
|
240*78*7 |
24#A |
26.86 |
|
240*80*9 |
24#B |
30.628 |
|
250*78*7 |
25#A |
27.41 |
|
250*80*9 |
25#B |
31.335 |
|
270*82*7.5 |
27#A |
30.838 |
|
270*84*9.5 |
27#B |
35.077 |
|
280*82*7.5 |
28#A |
31.427 |
|
280*84*9.5 |
28#B |
35.823 |
|
300*85*7.5 |
30#A |
34.463 |
|
300*87*9.5 |
30#B |
39.173 |
|
320*88*8 |
32#A |
38.083 |
|
320*90*10 |
32#B |
43.107 |
|
360*96*9 |
36#A |
47.814 |
|
360*98*11 |
36#B |
53.466 |
|
400*100*10.5 |
40#A |
58.928 |
|
400*102*12.5 |
40#B |
65.208 |
