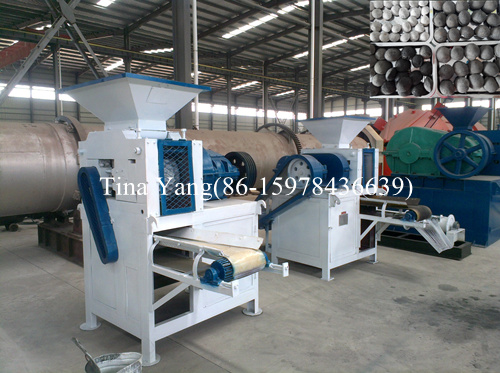

Charcoal Pellet Making Machine

Introduction:

Charcoal pellet making machine is mainly used for high-density coconut charcoal ,metal scrap (scrap iron, copper scrap, aluminum scrap, etc.), granular powder metal powder (iron powder, aluminum powder, copper powder, lead powder, etc.) , metallurgical additives, sponge iron, etc., without adding any binder pressed into the case of cylindrical cakes of high-density block (weight 2-8 kg), the cake density of up to 5T/M3 block above (the different raw materials, press out the cake block density and not quantity is not the same), pressed into the cake pieces can be directly cast furnace use.

Characteristics:

This series of coal pellet making machine will pass the power on to the two pressure roller through the reducer.The two sides and roll rotation, in both the rotating roll,Natural materials to enter the ball roll mode, with the roll rotation, material pressure on a small become larger, When the material to the two rollers rotating line contact point, the pressure of materials has reached the peak. Tremendous pressure in the role of line, the materials become a finished product from the powder ball.

Technical Parameter:

1.Model: type 430-2

2.Dimension: 2.3×1.53×1.9

3.Material quality of the rolls: 65 Mn ,be processed by quenching treatment

4.Model of reducer: ZQ400

5.Speed ratio: 1: 31.5

6.Size of roller: 430×250

7.Speed of mainshaft: 15-17r/min

8.Model of motor: Y132M-4

9.Power: 7.5kw

10.Output: 5-8t/h
