CHD-TB85 Hinged Door (Thermal Break)

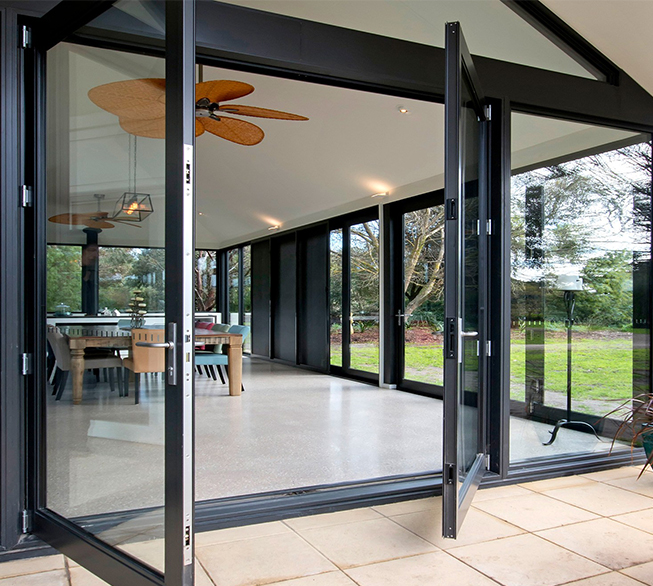

Hinged door CHD-TB85, is an entrance door with high-quality standards. The system includes thermal break profiles with a modern design for totally aligned constructions that offer high functionality. Offering many infill options including aluminum or glass panels, it satisfies the demands of thermal insulation and high-security level.
Overview of CHD-TB85 Aluminum Hinged Door (Thermal Break)
|
System |
Swing Door(Thermal-Break) |
|
Model No. |
CHD-TB85 |
|
Material |
Aluminum Alloy/Glass |
|
Hardware |
Chinese top brand(Kin Long)/Germany brand |
|
Glass Type |
Tempered/Float/Laminated/DGU/Ceramic Fritted/LowE/Tinted/Reflective/Heat Soak |
|
Cooperated Glass Brand |
Vitro(Formerly PPG)/Pilkington/Xinyi(SYG)/Yaopi(SYP)/Fuyao/Southglass(SG)/Kibing/CNG/ TaiwanGlass |
|
Surface Treatment |
Powder Coating/PVDF/Anodized/Electrophoresis/Wooden Grain |
|
Profile Brand |
6063-T5/6063-T6 |
|
Thermal Profile |
Thermal Break |
|
Standards |
In Compliance With ASTM/AS/NZS/AAMA/NFRC/EN/BSI/ISO |
|
Application |
Residential Apartment, Villa/Commercial Hotel, Mall, Office, Public Organization |
|
System Customization |
Available |
Data of CHD-TB85 Hinged Door (Thermal Break)
Testing Data of CHD-TB85 Hinged Door (Thermal Break)
|
Test |
Pressure |
Results |
|
Open and Close Operable Sash Test (AS 2047 & AS/NZS 4420.1-2016) |
-- |
No damage was observed after the test. |
|
Preloading (AS 2047 & AS/NZS 4420.1-2016) |
+0.81kPa |
No separation, plastic deformations or deleterious was observed. |
|
-0.85kPa |
||
|
Structural Test at Serviceability Limit State Wind Pressure (Wsls) (AS2047 & AS/NZS 4420.1-2016) |
+1.62kPa |
No glass breakage, collapse and permanent deformation was observed. Deflections of mullions and transomes as well as glass panel were within the allowable deflection limits. |
|
-1.69kPa |
||
|
Operating Force Test (AS 2047 & AS/NZS 4420.1-2016) |
-- |
The operating force of the specimen was within the allowable value. |
|
Air Infiltration Test (AS 2047 & AS/NZS 4420.1-2016) |
+150Pa |
The rate of air leakage of the specimen was within the allowable values. |
|
-150Pa |
||
|
Water Test under Static Pressure (AS 2047 & AS/NZS 4420. 1-2016) |
+486Pa |
No water leakage was observed. |
|
Structural Proof Test at Ultimate Limit State Wind Pressure (Wuls) (AS 2047 & AS/NZS 4420.1-2016) |
+2.50kpa |
There was no collapse of the test sample. |
|
-2.60kpa |
Thermal Data of CHD-TB85 Hinged Door (Thermal Break)
|
NFRC procedures |
NFRC100SB, NFRC200-2010 and NFRC500-2010 |
|
Software tools |
THERM 7.4.3.0 and WINDOW 7.4.6.0 |
|
Configuration |
6 single silver low-e CAVS S1 on Clear #2 + 12Ar + 5/1.52PVB/5 Clear |
|
Panel Dimension |
1070mm Wide 2440mm High |
|
Frame |
Painted Aluminum |
|
Panel U-value |
3.906W/m2k |
|
Visible Light Transmission |
0.394 |
|
SHGC |
0.34 |
|
Condensation Resistant |
28.4 |
Frame Data of CHD-TB85 Hinged Door (Thermal Break)
|
Parts Location |
Frame Area/m2 |
Edge Area/m2 |
U-Value(Frame) |
U-Value(Edge) |
|
W/m2k |
W/m2k |
|||
|
Header |
0.184 |
0.037 |
6.1182 |
2.1869 |
|
Left Jamb |
0.475 |
0.13 |
6.0585 |
2.1841 |
|
Right Jamb |
0.475 |
0.13 |
6.1144 |
2.188 |
|
Sill |
0.096 |
0.037 |
10.0888 |
2.2422 |
Glass Data of CHD-TB85 Hinged Door (Thermal Break)
|
Glass Data: 6mm HS (CAVS S1)#2 +12Ar +6-T-HST |
|||||||
|
Visible Light |
SHGC |
SC |
NFRC U-value |
STC |
|||
|
W/m3k(Argon) |
|||||||
|
T% |
R-out% |
R-in% |
Winter |
Summer |
|||
|
72 |
12 |
12 |
0.55 |
0.63 |
1.55 |
1.54 |
36 |
Benefits of CHD-TB85 Hinged Door (Thermal Break)
High-security level
High energy savings due to the high energy efficiency of the system
High level of sound insulation
Ease of use and high functionality
Modern design
High quality with certified performances
Increased static loads and functionality in case of severe weather conditions
Entrance doors with ease of access according to specifications for people with special needs
