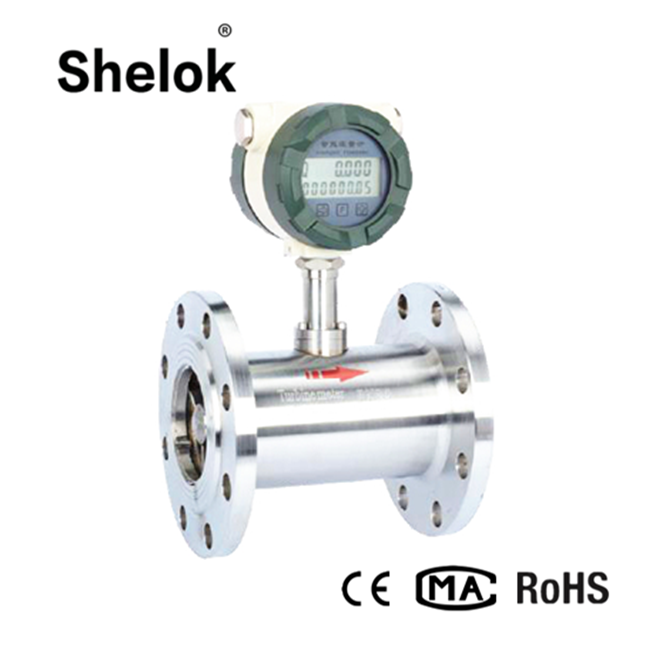

Cheap China Suppliers Digital Liquid Turbine Flow Meter
Quantité : 1 Prix : USD380~650
1.The description of the cheap china suppliers digital turbine flow meter:
This cheap china suppliers digital liquid turbine flow meter is used to detect instantaneous flow and total accumulated flow.And it converts the liquids into 4-20mA or pulse signal output.
2.The features of the cheap china suppliers digital turbine flow meter:
Require the media to clean, to install the filter
Advantages of the instrument
High accuracy, generally up to ± 0.5% R, ± 1.0% R
Good repeatability, short-term repeatability of up to 0.05% - 0.2%
Compact and compact, easy installation and maintenance
High pressure level
Pressure loss is small, strong circulation
Anti-vibration performance
3.The specification of the cheap china suppliers digital turbine flow meter:
| Model | LWGY-N | LWGY-A | LWGY-N Explosion type | LWGY-A Explosion type | LWGY-B | LWGY- C |
| Signal output | pulse | 4-20mA | pulse | 4-20mA | without | 4-20mA/pulse |
| Power supply | +24VDC±15% | +24VDC±15% | 24VDC±15% | 24VDC±15% | lithium battery | 24VDC±15% |
| Accuracy | 1.0~0.5 | 1.0~0.5 | 1.0~0.5 | |||
| Measuring range | Standard | Standard | Standard or extended | |||
| Monitor | without | without | within | |||
| Communication Interface | without | without | RS485 | |||
| Material | stainless steel | stainless steel | stainless steel | |||
| Explosion | without | ExdIIBT6 or ExiaIICT4 | ExdIIBT6 or ExiaIICT4 | |||
| Protection class | IP60 | IP65 | IP65 | |||
| Power consumption | <1W</td> | <1W</td> | <1W</td> | |||
| Instrument pass through | DN4~DN250 | DN4~DN250 | DN4~DN250 | |||
| Medium temperature | -20ºC~120ºC | -20ºC~120ºC | -20ºC~120ºC | |||
| Ambient temperature | -30ºC~60ºC | -30ºC~60ºC | -30ºC~60ºC | |||
4.The measuring range of the cheap china suppliers digital turbine flow meter:
| Instrument Path | Standard range (m3/h) |
Extended range (m3/h) |
Installation method | Conventional pressure (MPa) |
Special pressure rating (MPa) |
| DN 4 | 0.04~0.25 | 0.04~0.4 | Thread (flange) | 6.3 | 12,16,25 |
| DN 6 | 0.1~0.6 | 0.06~0.6 | Thread (flange) | 6.3 | 12,16,25 |
| DN 10 | 0.2~1.2 | 0.15~1.5 | Thread (flange) | 6.3 | 12,16,25 |
| DN 15 | 0.6~6 | 0.4~8 | Thread (flange) | 6.3,2.5(Flange) | 4.0,6.3,12,16,25 |
| DN 20 | 0.8~8 | 0.45~9 | Thread (flange) | 6.3,2.5(Flange) | 4.0,6.3,12,16,25 |
| DN 25 | 1~10 | 0.5~10 | Thread (flange) | 6.3,2.5(Flange) | 4.0,6.3,12,16,25 |
| DN 32 | 1.5~15 | 0.8~15 | Flange (thread) | 6.3,2.5(Flange) | 4.0,6.3,12,16,25 |
| DN 40 | 2~20 | 1~20 | Flange (thread) | 6.3,2.5(Flange) | 4.0,6.3,12,16,25 |
| DN 50 | 4~40 | 2~40 | Flange (thread) | 2.5 | 4.0,6.3,12,16,25 |
| DN 65 | 7~70 | 4~70 | Flange | 2.5 | 4.0,6.3,12,16,25 |
| DN 80 | 10~100 | 5~100 | Flange | 2.5 | 4.0,6.3,12,16,25 |
| DN 100 | 20~200 | 10~200 | Flange | 1.6 | 4.0,6.3,12,16,25 |
| DN 125 | 25~250 | 13~250 | Flange | 1.6 | 2.5,4.0,6.3,12,16 |
| DN 150 | 30~300 | 15~300 | Flange | 1.6 | 2.5,4.0,6.3,12,16 |
| DN 200 | 80~800 | 40~800 | Flange | 1.6 | 2.5,4.0,6.3,12,16 |
5.The application of the cheap china suppliers digital turbine flow meter:
This cheap china suppliers digital turbine flow meter is designed to measure the fluid velocity of the city water,pure water,deionized,water,ethyl ,kerosene,gasoline,lubricating oil,etc.And the housing material is stainless which can be widely used in pharmaceutical and food industry.
