Chemical Ground Electrode
Quantité : 50000/mont Prix : 10usd

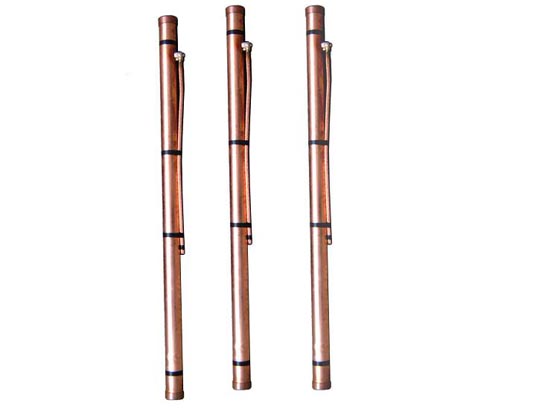

Chemical Ground Electrode System
Performance characteristics and working principle of chemical ground rod :
1. Chemical ground electrode
2. Existing soil
3. Special filler
4. Ions diffuse around
5. Expand the conductive range of the soil
Chemical Grounding electrode (chemical grounding rod) is a new type of grounding system suitable for all kinds of places with high grounding requirements and difficult grounding engineering.
The chemial grounding electrode system consists of advanced alloy compounds, with a copper tube on the outside to ensure maximum conductivity and long service life. The filling material inside the conductor contains special ionic compounds, which can absorb moisture in the air adequately. Active ions can be effectively released into the soil through the deliquescence, and interact with the moisture in the soil and air to further promote the external slow release and drag reduction of conductors, and to maintain the long-term stability of the resistance value. Compounds in conductors are gradually combined in colloidal transparency over time.
By utilizing the conductivity of the colloidal compound, the entire system can be ion-exchanged for a long time, thus forming an ideal electrolytic ion grounding system. After the slow-release filler in the conductor is embedded, the grounding resistance will gradually decrease, reaching a stable value within six months to one year, and the embedded slow-release process can last for several years. The main connecting parts of the ion grounding electrode are hot-melt welded, which has overcome other connection methods and easy connection loosening.
The connecting wire is a copper clad steel copperweld stranded wire with a section of 95 mm2 and a length of 3 m and is crimped to the grounding terminal/copper lug to facilitate connection with the grounding grid.
Chemical Ground Electrode Specification and models
|
Products |
Models No. |
Diameter mm |
Length mm |
Weight Kg |
Impuls run |
PH Value (ΔR) |
100Ω·M |
|
Chemical ground Electrode |
BSD-CGES55 |
55 |
1500 |
10 |
≤1% |
7 +/- 5% |
0.6 |
|
3000 |
20 |
≤1% |
7 +/- 5% |
0.4 |
The grounding electrode of BEISUDA COMPANY electrolytic ion fully meets the requirements of grounding protection equipment such as UL, NEC, ANS, lEC, BC and other international standards.
Chemical Ground Electrode application range
Lightning protection and grounding works for petrochemicals, oil storage, power plants, substations, communication base stations, airports and network computer rooms, etc.
Ningbo Zhenhai Beisuda Petrochemical Equipment Co.,Ltd located in Ningbo, Zhejiang, it is a professional enterprice, who focus on R&D, production, sales of copper clad steel rod. We sincerely invite and welcome people from all around the world to invest and create more values together.
