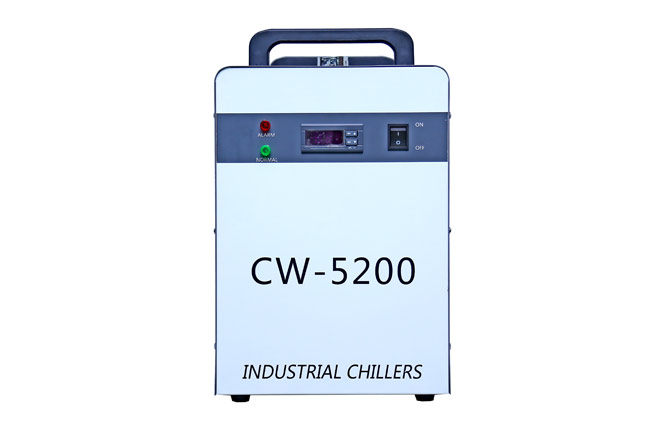

Chiller CW 5200 For 8KW CNC Spindle
Quantité : 1000sets/ Prix : 90-10000
Chiller cw 5200 is a small intelligent water chiller, suitable for cooling the spindle of numerical control equipment below 8kw, and used to cool the heat generated by the spindle when it is working. The cooling capacity of Cw5200 is 1400W, with ultra-high temperature control accuracy of ±0.3℃, and the ultra-intelligent dual-mode temperature control system can meet the different needs of users in many industries.
Advantage Of Chiller CW 5200 For 8KW CNC Spindle
1400W cooling capacity, optional environmentally friendly refrigerant R-1340A/R-410A.
Multi-national power specifications can be selected: European standard, American standard, German standard, Australian standard, etc., CE certification.
The temperature control accuracy is ±0.3℃.
Optional heater (applicable in winter or cold areas).
|
Model |
CW-5200AG |
CW-5200BG |
CW-5200DG |
CW-5200AI |
CW-5200BI |
CW-5200DI |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
|
Compressor power |
0.52KW |
0.5KW |
0.68KW |
0.52KW |
0.5KW |
0.68KW |
|
Refrigeration capacity |
1.49KW |
1.46KW |
1.56KW |
1.49KW |
1.46KW |
1.56KW |
|
Refrigerant |
R-22 / R-134a / R-410a |
|||||
|
Refrigerant charge |
360g |
380g |
350g |
360g |
380g |
350g |
|
Precision |
±0.3℃ |
|||||
|
Reducer |
Capillary |
|||||
|
Protection |
Over current protection for compressor, flow alarm, over-temperature alarm |
|||||
|
Pump power |
43.2W |
|||||
|
Tank capacity |
9L |
|||||
|
Inlet and outlet |
External Φ10mm brass connector |
Φ10mm speedy connector |
||||
|
Max. lift |
10 M |
25M |
||||
|
Max. flow |
16 L/min |
16 L/min |
||||
|
N.W |
29Kgs |
|||||
|
G.W |
31Kgs |
|||||
|
Dimension |
56 X 28 X 47 cm (L X W X H) |
|||||
|
Package dimension |
72 X 44 X 57 cm (L X W X H) |
|||||
Application Of Chiller CW 5200 For 8KW CNC Spindle
Suitable for cooling the spindle of numerical control equipment below 8kw.
As one of the leading process chillers manufacturers, Xlntchillers provides fume extractor, industrial chiller cw 5200, etc. Contact us to buy welding water chiller or know more.
