China CNC Router Manufacturer
Quantité : 100 sets/m Prix : negotiable
China CNC Router Manufacturer
From www.eaglecnctec.com
Jinan EagleTec CNC Machinery Co.,Ltd.,a professional China CNC Router Manufacturer.

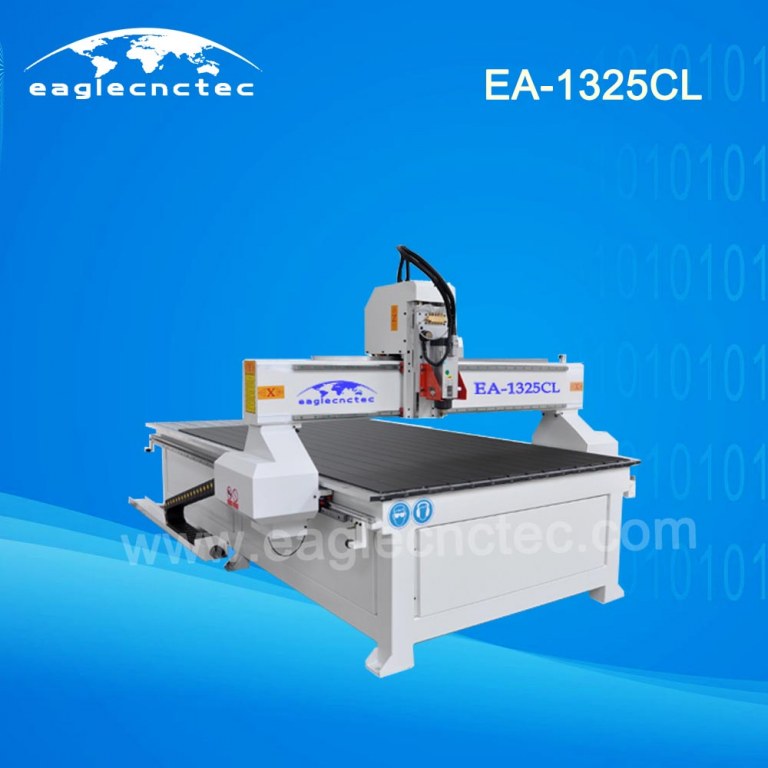

EA-1325CL is a basic model of cnc router, working size 1300x2500mm, clamp table. As a basic model, it can be used in any fields. This model equipped with origin Italy HSD6.0kw spindle, especially suitable for cutting jobs.
Application
Material: Solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.
Features
1) Frame is welded with seamless steel structure; processed by high temperature tempering treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6 legs with adjustable leveling feet
2) Beam is made of steel. A steel beam is superior to a aluminum in its ability to suppress and absorb the forces created during cutting. It is internally ribbed in order to stiffen the assembly; this design is minimizing the vibration while increasing accuracy and repeatability
3) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany rolling antibacklash ball screw
4) Each axis of motion is supported on high precision linear guide ways. Hiwin linear guides allow for higher feed speeds and a better quality of cut
5) The Y-axis uses a dual drive, one for each side of the gantry
6) Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc
7) Has the function of re-carving after break point and power failure
8) All the linear guides are centrally lubricated from a central system
