China high quality brass copper wire manufacturer / edm brass wire
Product Description

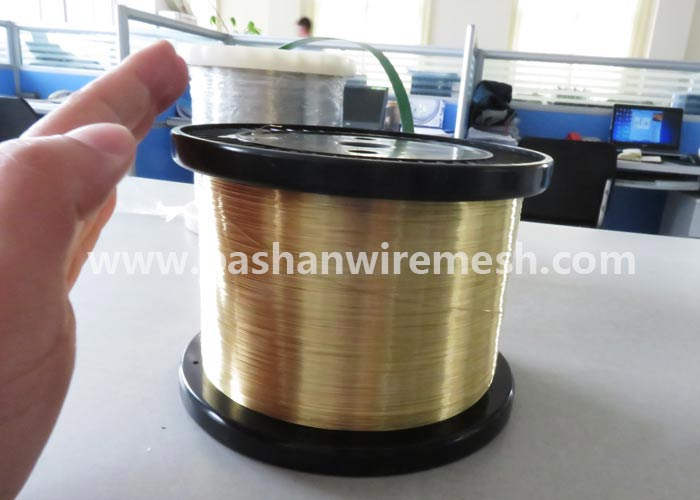

2017 High quality brass EDM wire (0.10 0.15 0.20 0.25 0.30 0.35mm)
Brass EDM wire Φ0.1mm~0.3mm
Raw Material: Cuzn35, Cuzn37, H62
Wire Diameter: 0.30mm, 0.25mm, 0.20mm, 0.15mm, 0.10mm
Wire Condition: Hard, Semi-hard, Soft
Tensile Strength: 1000, 900, 500, 450 N/㎜²
Conductivity: Above 20% IACS
Spool Type: P3, P5, P10, P20, DIN125, DIN160, DIN200
Weight/Spool: 3~20kg
Packing: PE film sealed, moisture proof, quake proof, corrosion resistance.
Applications: Used on wire-cut machine of Agie, Charmilles, Sodick, Mitsubishi, Makino etc.
| Condition | Specification | Diameter | Tolerance | Tensile Strength |
Spool / Weight |
| Hard | BSH1003 | 0.10mm | +0.001mm | ≥980 N/mm2 | DIN125(3kg,5kg) |
| BSH1503 | 0.15mm |
DIN125(3kg,3.5kg)
P5(5kg)
DIN160(7kg,8kg)
DIN200(15kg,16kg) |
|||
| BSH20** | 0.20mm | ||||
| BSH25** | 0.25mm | ||||
| BSH30** | 0.30mm | ||||
| Semi-hard | BSH25** | 0.25mm | 480~520 N/mm2 | ||
| BSH30** | 0.30mm | ||||
| Soft | BSH25** |
0.25mm |
380~420N/mm2 | ||
| BSH30** | 0.30mm |
Note: Remark “ ** ” is “ Standard Weight ”.
Brass EDM Wire Advantages
* The only professional military manufacturer of stainless steel wire and brass edm wire.
* More than 60 years experience of metal wire drawing and wire mesh weaving.
* Certified in accordance with GB/T ISO 9001: 2008, ISO/TS16949: 2009 quality system.
* Use reliable raw material, well-equipped workshop and skilled workers.
* 300 tons of brass edm wire annually
* Have independent import and export rights since 1996

Brass EDM Wire Features
* Various of wire core material can match demands of different wire-cute machine.
* Heat treatment technology ensures tensile strength stability, and prevents damage of wire.
* Superior verticality suitable for automatic threading.
* High drawing precision, fine ovality, low tolerance.
* Outstanding wire cutting speed compared, drop less powder.
Spool Types
* P3, P5, P10, P20, DIN125, DIN160, DIN200.
* PE film sealed
* Moisture, quake proof
* Corrosion resistance
Our Certifications
1)Passed ISO9001: 2008 quality certificate
2)Passed ISO/TS16949: 2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Our Company:
Xinxiang Bashan Aero Material Co., Ltd.In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan with the largest produce scale, strong technical support capabilities, products specifications are in complete, our company is the main drafting company who make the GB/T5330; GB/T6003.1; GJB5107; HB1862 and other 19 wire mesh technology standards in China. Remark: GB is the China standard. Bashan company acquired 24 metals wire & mesh patent such as (GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, national standard; GJB national military defense standard; HB, aviation standard.).
Contact:
Contact: Maggie Guan
AVIC Xinxiang Bashan Aero Material Co., Ltd.
No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- --
Web: www.bashanwiremesh.com
Tel: +86 373 3091998 ┃ Fax: +86 373 3091996 ┃ E-mail: bashan@vip.126.com
Skype: bashan05@hotmail.com Mob(Whatapp): +8615737341712
