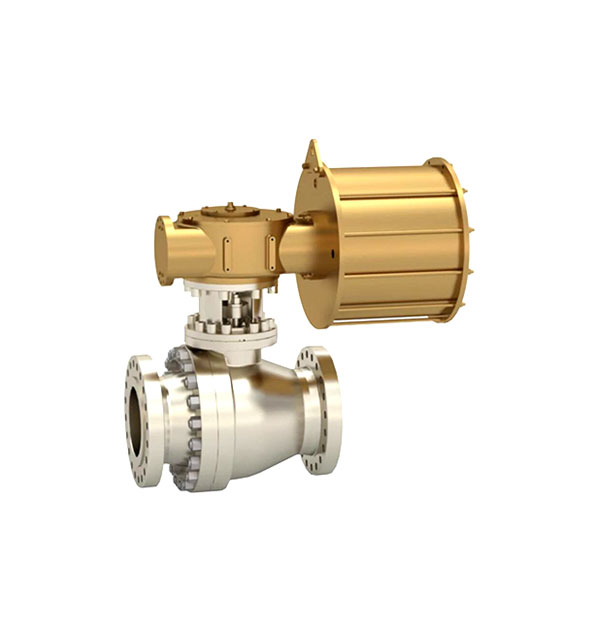

China Pneumatic Actuated Ball Valve

The pneumatic 3 way ball valve from UTMOST pneumatic ball valve factory can be used under extremely harsh application conditions, such as high temperature, high pressure, high frequency, abrasion, corrosive medium, and crystalline medium. The stainless steel pneumatic ball valve has its own characteristics and advantages, such as short opening and closing time, stable torque, long service life and reliable sealing which can ensure free opening and closing. UTMOST pneumatic ball valve factory is one of professional pneumatic ball valve manufacturers. If you want to know the pneumatic ball valve price and get oem ball valve, please contact us.

Pneumatic Actuated Ball Valve Technical Specification

Size: From 2" up to 24”

Body material: Carbon Steel, Alloy Steel, Stainless steel,

Nickel-based High-temperature Alloys, Titanium Alloys, etc.

End connections: Flanged(FF, RF, RTJ)

Pneumatic ball valve working pressure: From Class150LB to Class2500LB

Standard compliance: ASMEB16. 10, ASMEB16. 34, ASMEB16.5, API 6D, API 608

For more other valve control system specifications request, please contact with Utmost china valve factory.

What is the Difference between Pneumatic Ball Valve and Other Valves?

UTMOST pneumatic ball valve factory's actuator operated ball valve compared with gate valves, stop valves, and our wholesale butterfly valve, the medium flow resistance is extremely low. The valve can be driven by pneumatic, electric, hydraulic, gas-liquid linkage, electric-liquid linkage, manual, etc. Utmost has its own brand of pneumatic actuator, and can also select the brand and structure of actuator according to the customers' requirements.

Pneumatic Actuated Ball Valve Datas

Technical Performance of Pneumatic Control valve Ball Valve

Structural Style

BAF, BA-S, BA-P

Nominal Size DN/NPS

NPSl/4 (DN6> — NPS24(DN600)

Nominal Pressure PN/ANSI

Classl50 (PN20) — Class2500 (PN420)

Applicable Temperature

-196°C — 816°C

Valve Housing Material

Carbon Steel, Alloy Steel, Stainless steel,

Nickel-based High-temperature Alloys, Titanium Alloys

Valve Structure

2/3 Piece Type, Cast/Forged

Suitable Media

Oxygen, Hydrogen, Slag Water, Cinder

Actuator Type

Pneumatic Rack and Pinion Type, Pneumatic Fork Type, Electric, Electro-hydraulic, Gas-hydraulic

Seal Test Standards

API 598, MSSSP-61, ISO 5208, ANSI/FCI 70-2

Reference Standards

ASMEB16. 10, ASMEB16. 34, ASMEB16.5, API 6D, API 608

As one of china valves manufacturers, we will do our best to meet all the needs of customers.
