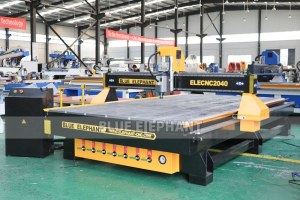

Chinese CNC Machine 2040 Wood Carving Machines for Wooden Furniture
Prix : $4,800.00-$35,000.00
Compared with other 3-axis engraving machines, this 2040 woodworking CNC router has a larger work surface, which not only improves production efficiency, but also expands the processing range of the machine. And adopting the DSP control system, it is easy to operate. Moreover, it is worth mentioning that with the bed frame made of new square tube bed structure makes the processing more stable.
Features:
2040 woodworking machine can achieve simple operation under dsp a11 control system.
The spindle of 2040 3 axis cnc machinery is 6KW Italy HSD air cooling spindle. It's good quality to realize fully auto 3D wood, pvc, acrylic sheet engraving.
Support customized design. If you want to do rotary work, the machine can be made with rotary device. All the specifications and other items can be designed according to your own actual requirements.
Parameter:
Description |
Parameter |
X,Y,Z Working Area |
2000x4000x200mm |
Table Surface |
Vacuum & T-slot Table |
Frame |
Welded structural steel tube frame |
guide |
#20 Taiwan HIWIN/PMI Linear guide |
Vacuum pump |
2.2 KW Vortex vacuum pump *2 |
Spindle Power |
6KW Italy HSD air cooling spindle |
Spindle Speed |
0-18000RPM |
Drive Motors |
stepper FL118 motor and YAKO 2811 big driver |
Inverter |
7.5 kw Fuling Inverter |
Command Language |
G Code |
Control System |
DSP a11 |
Computer Interface |
USB |
Collet |
ER32 |
Software Compatibility |
Artcam Software (Option) |
Running Environment Temperature |
0 – 45 Centigrade |
Relative Humidity |
30% – 75% |
Application
Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
Jinan blue elephant cnc machinery co ltd produces wood carving machine and cnc router,contact us now.
Personne à contacter : Zhang Jack , +15 0 64 02 67 72
