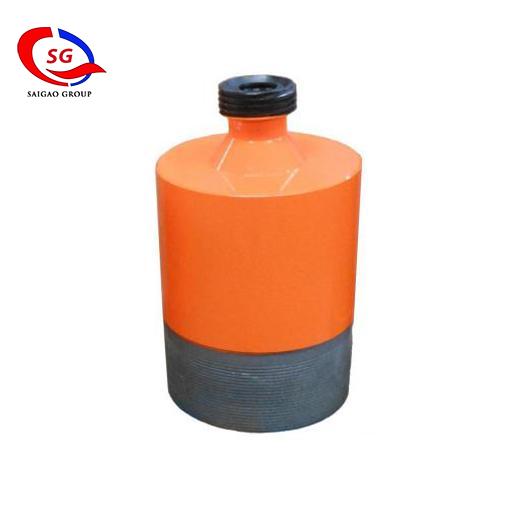

CIRCULATING SWAGE
Saigao Circulating Swage is forged from high-grade steel materials and machined to the required specifications. After heat treatment and non-destructive testing, it is confirmed that the product is free of any defects. It can be connected to a square drill pipe to circulate mud, or it can be connected to a drill pipe to lift the casing string.
The top of Casing Circulating Swage Drilling connects to the hoses, the bottom connects to the casing.
Main body is made from AISI4145H alloy steel.
Circulating Swage Main Technical Parameters
|
Size |
Body OD Size(mm) |
ID size (mm) |
Top box conn |
Bottom Pin Conn |
Length |
W.P. |
|
4" |
121 |
50.8 |
2" FIG1502F |
4" Casing thread |
500 |
10000 |
|
4½" |
121 |
50.8 |
2" FIG1502F |
4½" Casing thread |
||
|
5" |
128 |
50.8 |
2" FIG1502F |
5" Casing thread |
||
|
5½" |
145 |
50.8 |
2" FIG1502F |
5½" Casing thread |
||
|
5¾" |
148 |
50.8 |
2" FIG1502F |
5¾" Casing thread |
||
|
6⅝" |
178 |
50.8 |
2" FIG1502F |
6⅝" Casing thread |
||
|
7" |
179 |
50.8 |
2" FIG1502F |
7" Casing thread |
||
|
7⅝" |
195 |
50.8 |
2" FIG1502F |
7⅝" Casing thread |
||
|
7¾" |
198 |
50.8 |
2" FIG1502F |
7¾" Casing thread |
||
|
7⅞" |
202 |
50.8 |
2" FIG1502F |
7⅞" Casing thread |
||
|
8⅝" |
222 |
50.8 |
2" FIG1502F |
8⅝" Casing thread |
||
|
9⅝" |
270 |
50.8 |
2" FIG1502F |
9⅝" Casing thread |
||
|
9⅞" |
270 |
50.8 |
2" FIG1502F |
9⅞" Casing thread |
||
|
10¾" |
275 |
50.8 |
2" FIG1502F |
10¾" Casing thread |
||
|
11¾" |
300 |
50.8 |
2" FIG1502F |
11¾" Casing thread |
||
|
12¾" |
326 |
50.8 |
2" FIG1502F |
12¾" Casing thread |
||
|
13⅜" |
342 |
50.8 |
2" FIG1502F |
13⅜" Casing thread |
||
|
13⅝" |
348 |
50.8 |
2" FIG1502F |
13⅝" Casing thread |
||
|
16" |
410 |
50.8 |
2" FIG1502F |
16" Casing thread |
||
|
16¾" |
428 |
50.8 |
2" FIG1502F |
16¾" Casing thread |
||
|
18⅝" |
475 |
50.8 |
2" FIG1502F |
18⅝" Casing thread |
||
|
20" |
510 |
50.8 |
2" FIG1502F |
20" Casing thread |
Saigao Group is a professional oil equipment suppliers, we provide oilfield cementing tools, circulating swage, pumping unit parts, ditch magnet drilling and etc. Want to know more? Please contact us.
Personne à contacter : Liu Rex, +86 0531 69959201
