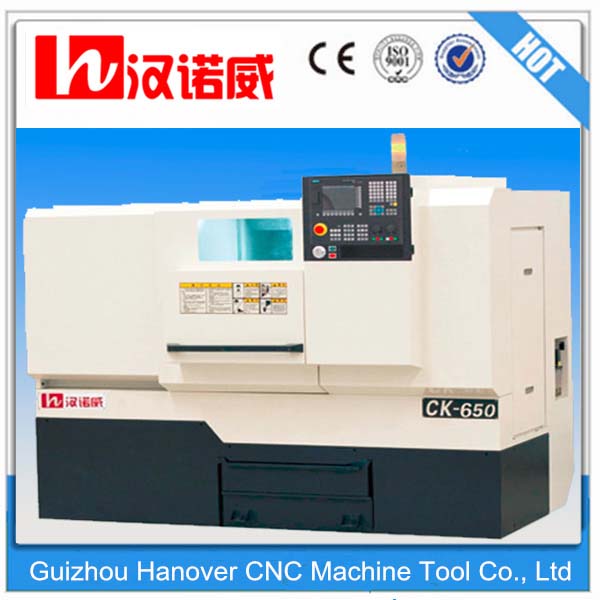

CK650--Hanover Innovative Flat Bed CNC Lathe
CK650--Hanover Innovative Flat Bed CNC Lathe
1. Precision ball screw, Bearings
2. Optional cnc controller
3. Optional accessories, like Hydraulic chuck
4. R&D team, provide OEM design and services
5. All machine passed CE-certificate
CK650--CNC Lathe Specifications:
| max. turning diameter over bed | mm | 700 |
| max. turning diameter over the first support | mm | 670 |
| max. turning diameter over the second support | 330 | |
| max. machining length | mm | 438(with inner enclosure)/480(without inner enclosure) |
| speed range | rpm | infinite 20-2000rpm |
| spindle head type | A2-8 | |
| main motor rating | kW | 7.5-11-15 AC servo motor or frequency conversion motor |
| chuck type | 250/325/3-jaw | |
| reduction gear ratio | 1: 03 | |
| spindle hole diameter | mm | 86 |
| max. X stroke | mm | 466 |
| max. Z stroke | mm | 580(Chuck included) |
| X/Z axis screw model | 3208/4008 | |
| X axis motor torque | N.M | 10 |
| Z axis motor torque | N.M | 15 |
| X connecting way | PD | |
| Z connecting way | PD | |
| positioning accuracy | mm | 0.012 |
| machining precision on workpiece | IT6-IT7 | |
| repeatability | mm | 0.006 |
| ellipcity | 0.005 | |
| roughtiness of surface | Ra1.2 | |
| guideway width/type | 470mm/ double trianglular guideways,middle-set screw | |
| tool installation method | electric tool carrier, hydraulic turret, row tool, power head, or mixed | |
| cutter arbor | 25*25 | |
| spindle installation method | horizontal flange | |
| tailstock | optional | |
| chip conveyor | optional automatic conveyor on the back | |
| overall demensions(L*W*H) | mm | 2160*1630*1720 |
| weight | kg | 2600 |
Economic Configuration:
1. Single spindle
2. Frequency conversion stepless speed regulation
3. CNC system: KT820Ti, servo motor for X,Z axis, servo driven
4. Manual 3-jaw chuck, manual tailstock
6. 4-position electrical tool post
7. Automatic electronic pump lubrication, Lighting system, Cooling system
Optional configuration:
Fanuc Siemens808D KND1000TI cnc controller
Hydraulic chuck or Pneumatic chuck
Hydraulic tailstock or Pneumatic tailstock
Soft jaws/ 4 jaw chuck
6/8-station electric tool turret
Automatic bar feeding
Automatic chip conveyor
CK650--CNC Lathe packages:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease, and Stretch film
Reasons for Choosing us:
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
If you like,please cantact me immediately and send me enquiry.
Owen(skype: owen.hanovercnc)
Email: owen@hanovercnc.com
Phone: 0086-15564148836
Personne à contacter : Owen OuYang, 86 15564148836
