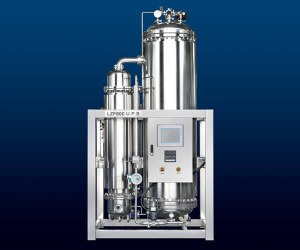

CLEAN STEAM GENERATOR
The prototype of the clean steam generator is a pure steam generator in the pharmaceutical industry. In structural design, it simplifies and weakens the complex steam water separation structure. Compact structure, small floor area, no water storage, high quality of clean steam.
It is widely used in food, beverage, electronics, dairy, medicine and other industries.
Specification of Clean Steam Generation Equipment
|
Specification |
Steam Pressure(Mpa) |
Steam Output(Kg/h) |
Steam Consumption(Kg/h) |
Purified Water Consumption(L/h) |
Clean Steam Pressure(Mpa) |
Dimension L×W×H(mm) |
|
CSG100 |
0.4 |
100 |
130 |
125 |
0.3 |
700×900×2500 |
|
CSG200 |
0.4 |
200 |
260 |
250 |
0.3 |
700×1000×2700 |
|
CSG300 |
0.4 |
300 |
390 |
375 |
0.3 |
800×1100×2800 |
|
CSG400 |
0.4 |
400 |
520 |
500 |
0.3 |
800×1200×3000 |
|
CSG500 |
0.4 |
500 |
650 |
625 |
0.3 |
800×1300×3100 |
|
CSG600 |
0.4 |
600 |
780 |
750 |
0.3 |
900×1300×3100 |
|
CSG700 |
0.4 |
700 |
910 |
875 |
0.3 |
900×1300×3100 |
|
CSG800 |
0.4 |
800 |
1040 |
1000 |
0.3 |
1000×1300×3200 |
|
CSG900 |
0.4 |
900 |
1170 |
1125 |
0.3 |
1000×1300×3200 |
|
CSG1000 |
0.4 |
1000 |
1300 |
1250 |
0.3 |
1200×1300×3200 |
|
CSG1500 |
0.4 |
1500 |
1950 |
1875 |
0.3 |
1400×1300×3200 |
|
CSG2000 |
0.4 |
2000 |
2600 |
2500 |
0.3 |
1400×1300×3200 |
FEATURES OF CLEAN STEAM GENERATORS
01.
Precise control of clean steam output pressure and temperature, fluctuation within+5%.
02.
Clean steam pressure output range: 2-4Bar.
03.
PLC+HMI full-automatic control mode.
04.
Rising film/falling film, two working modes are optional.
05.
Comply with relevant requirements of WS310 supply room management specification.
As professional clean steam generator manufacturers, we will do our best to meet all the needs of customers.
If you want to know more applications of water system in pharma industry, please visit our website.
