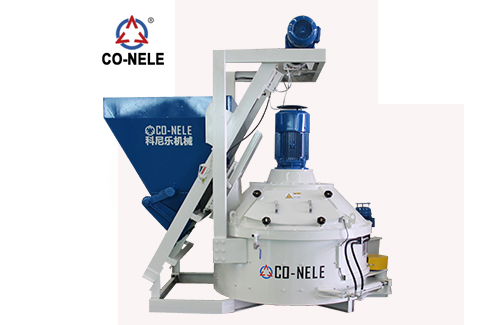

CMP Planetary Precast Concrete Mixer Machine
Quantité : 1 Prix : quoted price
Planetary Fly-cutter Mixer
Mixing blades are designed in parallelogram structure(planted),which can be turned 180°for reuse to increase semice life. Bottom scraper/ side scraper /planetary mixing/fast auxiliary flying knife. The movement of the material inside the trough is smooth and continuous．
Observing Port & Maintaining Door
There is an observing port on the maintaining door. You can observe the mixing situation without cutting off power. In order to improve the security of using the product,reliable high-sensitive security switches are used in the maintaining door to make the maintaining work safe and convenient.
Hydraulic Discharge Door & Pneumatic Discharge Door
According to the different demands of customers, the discharging door can be opened by hydraulic, pneumatic or by hands. The number of the discharging door is three at most. And there is special sealing device on the discharging door to ensure the sealing reliable．
Water & Additive Device
Overhead structure is used to water ,large covering area and make the material more uniform mixing．
Productivity
|
Type |
CMP50 |
CMP100 |
CMP150 |
CMP250 |
CMP330 |
CMP500 |
CMP750 |
CMP1000 |
|
Output capacity(L) |
50 |
100 |
150 |
250 |
330 |
500 |
750 |
1000 |
|
Input capacity(L) |
75 |
150 |
225 |
375 |
500 |
750 |
1125 |
1500 |
|
Output weight(Kg) |
120 |
240 |
360 |
600 |
800 |
1200 |
1800 |
2400 |
|
Mixing power(Kw) |
3 |
5.5 |
7.5 |
11 |
15 |
18.5 |
30 |
37 |
|
Dischar ging power(Kw) |
Pneumatic discharge(optional hydraulic) |
|||||||
|
Planet/mixing arm |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
|||
|
Paddle(nr) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
DIscharging paddle(nr) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
Weight(Kw) |
700 |
1100 |
1300 |
1500 |
2000 |
2400 |
3900 |
6200 |
|
Ligting power(Kw) |
- |
2.2 |
2.2 |
3 |
4 |
4 |
7.5 |
11 |
|
Dimension(LxWxH,MM) |
950x790x1200 |
1670x1460x1450 |
1670x1460x1620 |
1860x1650x1780 |
1870x1870x1855 |
2230x2080x1880 |
2580x2340x2195 |
2890x2602x2220 |
|
Type |
CMP1250 |
CMP1500 |
CMP2000 |
CMP2500 |
CMP3000 |
CMP4000 |
CMP4500 |
CMP5000 |
|
Output capacity(L) |
1250 |
1500 |
2000 |
2500 |
3000 |
4000 |
4500 |
5000 |
|
Input capacity(L) |
1875 |
2250 |
3000 |
3750 |
4500 |
6000 |
6750 |
7500 |
|
Output weight(Kg) |
3000 |
3600 |
4800 |
6000 |
7200 |
9600 |
10800 |
12000 |
|
Mixing power(Kw) |
45 |
55 |
75 |
90 |
110 |
160 |
200 |
250 |
|
Dischar ging power(Kw) |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
4 |
|
Planet/mixing arm |
2/4 |
2/4 |
3/6 |
3/6 |
3/9 |
3/9 |
3/9 |
3/9 |
|
Paddle(nr) |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
1 |
|
DIscharging paddle(nr) |
1 |
1 |
2 |
2 |
2 |
2 |
2 |
2 |
|
Weight(Kw) |
6700 |
7700 |
9500 |
11000 |
12000 |
16500 |
17500 |
18500 |
|
Ligting power(Kw) |
15 |
15 |
22 |
30 |
37 |
- |
- |
- |
|
Dimension(LxWxH,MM) |
3060x2760x2305 |
3230x2902x2470 |
3625x3230x2630 |
3900x3550x2695 |
3900x3550x2975 |
4560x4150x3105 |
4560x4150x3305 |
4560x4150x3305 |
