Characteristics

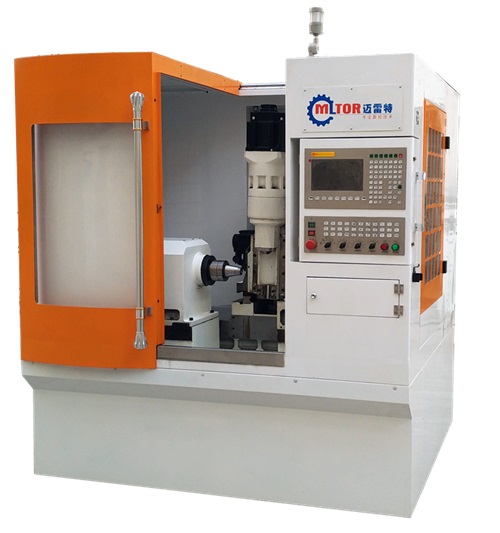

The Mltor high speed CNC gear hobbing machine adopts the theory of generating method, realize indexing motion and differential compensation motion via the function of CNC system electric gear box(EGB). It is applicable to process spur gear, beveled gear, worm gear, small taper gear, drum gear, spline and the other teeth shape workpieces. Due to its high speed features, this machine is especially suitable for large batch processing of motorcycle, small vehicle gear.

Specifications

Max workpiece dia: 200mm

Max modulus: 2.5mm

Max machining length: 250mm

Max Hob Dia: 160mm

Teeth number: 5-9999

Hob speed: 3000r/min

Main motor power: 5.5kw

Machining accuracy: 5-7(GB/T10095-2001)
