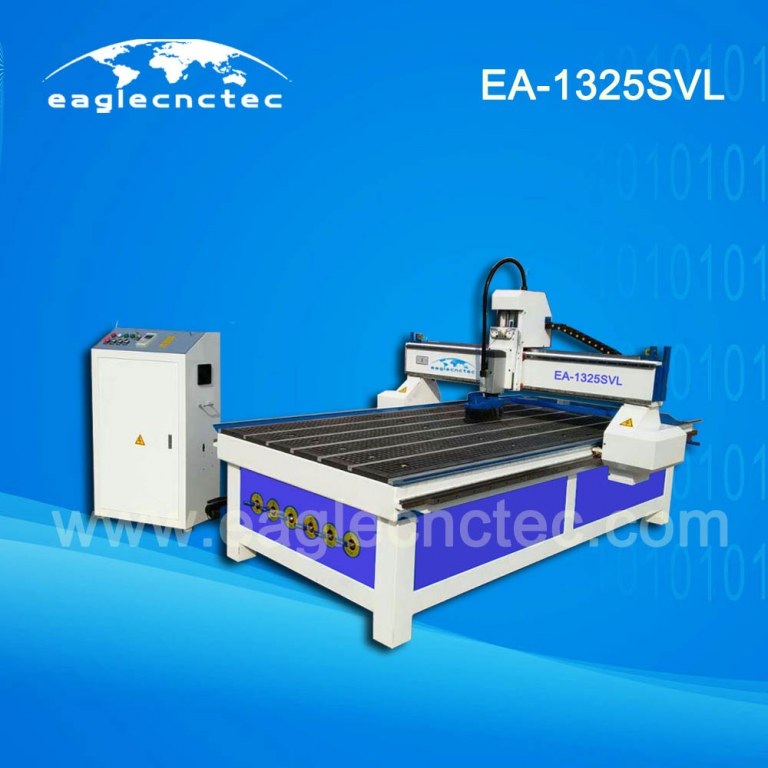

CNC Router Kit 4x8 Model. EA-1325SVL is a basic machine with working size 1300mm by 2500mm; It is equipped with origin Italy HSD spindle which is the best quality spindle on the world for cnc router machine; another advantage of EA-1325SVL is it's table, which is a perfect combination of T-slot and vacuum; this table design increase 30% possibility of clamping work piece by clamp compared with regular vacuum table design.

CNC router kit 4x8 can do the production jobs like: wood door, wall art dector panel, slatwall, euro-style furniture, sign cutting etc.

Application

Material good for cnc router 4x8 is solid wood, MDF, plastic, PVC, acrylic, and other nonmetal materials.

Technical Parameter

XY Working Size | 4'x8'

Feeding Height | 200mm

Machining Precision | 0.1mm / 100mm

Max. Idle Running Speed | 35,000/min

Max. Routing Speed | 20,000mm/min

Drive Motor | Big torque stepping

Spindle | Air cooling 3.0kw, origin HSD from Italy, variable speed 0-18,000RPM

Controller | DSP A11 or NK105G2

Working Table | PVC vacuum with T-slot

Vacuum Pump | Water-ring, 5.5kw, 230CBM/h air flow

XY Transmission | Helical rack and pinion

Z Transmission | Rolling balls crew

XYZ Linear | HIWIN rail, origin from Taiwan

Working Power | AC380V/50-60Hz, 3 Phase 4 Wires

Max. Power Consumption | 12KW

Net Weight | 1350KGS

More choice on specification for you:

Many items of cnc router kit 4x8 can be customized as per your request. They contains spindle (air or water cooled, power, brand), driving motor (stepper or servo, brand, model), controller (Richauto DSP, NC studio, NK105 DSP), linear guideway (brand, size), inverter (brand, model), driver (brand, model).

Packing Details

EagleTec CNC router kit is completely wrapped with plastic film to prevent being rusty, and then packed into free-fumigation wood case.

Features of EA-1325SVL

1) Perfect combination of T-slot and Vacuum table makes you fix work piece by clamp with

no limit.

2) Frame is welded with seamless steel structure; processed by high temperature tempering

treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 6

legs with adjustable leveling feet.

3) Beam is made of steel. A steel beam is superior to a aluminum in it's ability to suppress

and absorb the forces created during cutting. It is internally ribbed in order to stiffen the

assembly; this design is minimizing the vibration while increasing accuracy and repeatability.

4) The X and Y axis motion is via a rack and pinion drive, which is hardened for extremly

long life and ground for a very good accuracy; The Z axis is driven by a hardened Germany

rolling antibacklash ball screw.

5) Each axis of motion is supported on high precision linear guide ways. Hiwin linear guides

allow for higher feed speeds and a better quality of cut.

6) The Y-axis uses a dual drive, one for each side of the gantry.

7) Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/UcanCAM etc.

8) Has the function of re-carving after break point and power failure.

9) All the linear guides are centrally lubricated from a central system.
