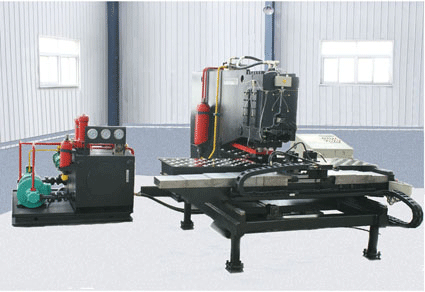

CNC hydraulic punching drilling machine

Quantité : 50 sets pe   Prix : negotiated

CNC hydraulic punching drilling machine

This machine is used for punching or drilling, marking of connection plate on power-transmission tower and steel structure industry.

Features of CNC hydraulic punching drilling machine

Main frame is fortified C-type welding structure, withstrong rigidity and longevity of service.

1) Three stations(one can be used as marking station),automatic allocation station.

2) Worktable with ball-bearings supports workpiece,gripresistance is less.

3) X-axis and Y-axis are driven by servo-motor and ballscrew, ensuring higher positioning precision,stable operation and longevity ofservice.

4) Two axes CNC, ensuring high precision positioning.

5) Workpiece programming manually,also can be createdby lofting software automaticallyand then transmitted through USB ornetwork, simulant workpiece graphics can be displayed in order to make programchecking more conveniently.

Specifications of CNC hydraulic punching drilling machine

Model

CJZ100

(kN) Punching force

1000

(kN) Marking force

800

(mm) Thickness range of workpiece

5-25 for punch, max. 30 for drill

(mm) Max. workpiece dimension

1500×800

Number of stations

4

(mm) Max. punching dia.

Φ26

(mm) Max. drilling dia.

Φ40

(mm) Min. margin distance from a hole center

25 Punching

Up to diameter while drilling

(mm) Stroke of hydraulic slide

50

(MPa) Air pressure

0.5

Characters number

14 or 18

(mm) Dimension of characters

14×10

(kW) Motor power of hydraulic pump

15

(kW) Power of servo motor

2×2

(mm) Stroke of drilling spindle

180

Speeds of drilling spindle (stepless adjustment, rpm)

120-560

(kW) Power of main spindle

5.5

Working precision

According to standard GB/T2694-2003

(kg) Net weight

7000

(m) Overall dimension(L×W×H)

3020×3420×2722

Localisation : NO.3999 airport road, 250107 Jinan,
Personne à contacter : Kate Guo, 8615820008837
