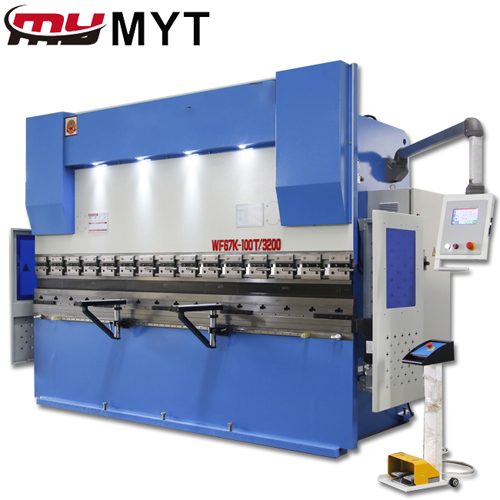

CNC Press Brake Machine
Quantité : 500 sets/ Prix : 3000-10000
This cnc hydraulic press brake for sale is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of workpieces. One slider travel makes a sheet bending and the complicated shape workpiece may be achieved through bending many times.
Features of cnc press brake machine :
• CNC 4+1 axis
• Laser beam safety photocells
• Silent and reliable internal gear pump
• Hydraulic system regulated by proportional valves
• Combination of brushless drive and motor with "can open" digital technology, high precision back gauge which permits fast movements of the axes.
• High precision optical lines
• Adjustable clampings
• Hardened, grinded tools and clamps for quick tools adjustment
• Complete back gauge fingers on double linear guide with LEDs
• Stainless steel front supports adjustable in height
• Automatic hydraulic crowning p
• Electrical panel with high-quality components
• Start&Stop system
CNC Hydraulic Press Brake Machine Main Technical Parameters:
|
Model |
Nominal force (KN) |
Worktable length mm |
Poles distance mm |
Throat depth mm |
Slider travel mm |
Open max mm |
Power KW |
Dimension mm |
|
40/1600 |
400 |
1600 |
1305 |
200 |
110 |
300 |
4 |
1800x1100x1870 |
|
40/2000 |
400 |
2000 |
1650 |
200 |
110 |
300 |
5.5 |
2200x1100x1870 |
|
40/2500 |
400 |
2500 |
2050 |
200 |
110 |
300 |
5.5 |
2700x1100x1870 |
|
40/3200 |
400 |
3200 |
2600 |
200 |
110 |
300 |
5.5 |
3400x1100x1870 |
|
50/3200 |
500 |
3200 |
2600 |
250 |
120 |
315 |
5.5 |
3400x1200x2150 |
|
63/1600 |
630 |
1600 |
1300 |
250 |
120 |
350 |
5.5 |
1800x1300x2250 |
|
63/2500 |
630 |
2500 |
2050 |
250 |
120 |
350 |
5.5 |
2700x1300x2250 |
|
63/3200 |
630 |
3200 |
2600 |
250 |
120 |
350 |
5.5 |
3400x1300x2250 |
|
80/2000 |
800 |
2000 |
1650 |
250 |
120 |
360 |
7.5 |
2200x1300x2260 |
|
80/2500 |
800 |
2500 |
2050 |
250 |
120 |
360 |
7.5 |
2700x1300x2260 |
|
80/3200 |
800 |
3200 |
2600 |
250 |
120 |
360 |
7.5 |
3400x1300x2260 |
|
80/4000 |
800 |
4000 |
3200 |
250 |
120 |
360 |
7.5 |
4200x1300x2410 |
|
100/2500 |
1000 |
2500 |
2050 |
320 |
120 |
380 |
7.5 |
2700x1350x2350 |
|
100/3200 |
1000 |
3200 |
2600 |
320 |
120 |
380 |
7.5 |
3400x1350x2450 |
|
100/4000 |
1000 |
4000 |
3200 |
320 |
120 |
380 |
7.5 |
4200x1350x2500 |
|
125/2500 |
1250 |
2500 |
2050 |
320 |
120 |
380 |
7.5 |
2700x1350x2350 |
|
125/3200 |
1250 |
3200 |
2600 |
320 |
120 |
380 |
7.5 |
3400x1350x2450 |
|
125/4000 |
1250 |
4000 |
3200 |
320 |
120 |
380 |
7.5 |
4200x1350x2500 |
|
160/2500 |
1600 |
2500 |
2050 |
320 |
155 |
420 |
11 |
2700x1510x2595 |
|
160/3200 |
1600 |
3200 |
2600 |
320 |
155 |
420 |
11 |
3400x1510x2595 |
|
160/4000 |
1600 |
4000 |
3200 |
320 |
155 |
420 |
11 |
4200x1510x2695 |
|
160/6000 |
1600 |
6000 |
4800 |
320 |
155 |
420 |
11 |
6200x1710x2880 |
|
200/2500 |
2000 |
2500 |
2050 |
320 |
200 |
440 |
15 |
2700x1680x2675 |
|
200/3200 |
2000 |
3200 |
2600 |
320 |
200 |
440 |
15 |
3400x1680x2675 |
|
200/4000 |
2000 |
4000 |
3200 |
320 |
200 |
440 |
15 |
4200x1680x2725 |
|
200/6000 |
2000 |
6000 |
4800 |
320 |
200 |
440 |
18.5 |
6200x1680x3345 |
|
250/2500 |
2500 |
2500 |
1900 |
320 |
250 |
520 |
18.5 |
2700x1690x2825 |
|
250/3200 |
2500 |
3200 |
2600 |
320 |
250 |
520 |
18.5 |
3400x1690x2875 |
|
250/4000 |
2500 |
4000 |
3200 |
320 |
250 |
520 |
18.5 |
4200x1690x2960 |
|
250/6000 |
2500 |
6000 |
4800 |
320 |
250 |
520 |
18.5 |
6200x1690x3100 |
|
300/3200 |
3000 |
3200 |
2600 |
400 |
250 |
535 |
22 |
3400x2020x3150 |
|
300/4000 |
3000 |
4000 |
3200 |
400 |
250 |
535 |
22 |
4200x2020x3125 |
|
300/6000 |
3000 |
6000 |
4800 |
400 |
250 |
535 |
22 |
6300x2050x3610 |
|
350/3200 |
3500 |
3200 |
2600 |
400 |
250 |
540 |
22 |
3500x2040x3100 |
|
350/4000 |
3500 |
4000 |
3200 |
400 |
250 |
540 |
22 |
4300x2040x3160 |
|
350/6000 |
3500 |
6000 |
4800 |
400 |
250 |
540 |
22 |
6300x2040x3500 |
|
400/4000 |
4000 |
4000 |
3200 |
400 |
320 |
615 |
30 |
4300x2100x3160 |
|
400/6000 |
4000 |
6000 |
4700 |
500 |
320 |
615 |
30 |
6300x2420x3500 |
|
500/4000 |
5000 |
4000 |
3200 |
400 |
320 |
635 |
30 |
4300x2240x3510 |
|
500/6000 |
5000 |
6000 |
4800 |
400 |
320 |
635 |
30 |
6300x2240x3615 |
MYT is one of professional cnc press brake manufacturers. We provide CNC Cutting Machine, Metal Bending Machine, semi automatic bandsaw machine, sheet metal bending machine and so on. Want to know about spiral duct machine price? Please contact us.
Personne à contacter : Zhao Melody , 8615951670606
