CNC Router ATC 1325 woodworkng center

Product Description

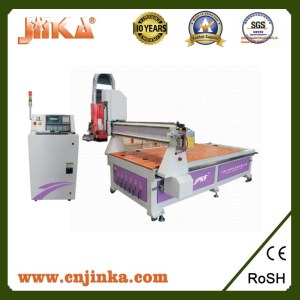

ATC 1325 Woodworking Center
Atc 1325 Woodworking Center

Feature:

(1)Taiwan Syntec System
(2)Carrousel type,8pcs
(3)6 partition Vacuum
(4)Janpanese YASKAWA Servo Motor 750W
(5)HQD 9.0KW Air Cooling Spindle
(6)Automatic Lubrication
(7)X/Y/Z Taiwan PMI guide rail


Parameter Table:

Model Available

ATC-1325

Working Area (mm)

1300*2500

Feeding height (mm)

230 (280,330 optional)

Idle speed

30m/min

Processing speed

20m/min

Spindle power

HQD 9.0Kw Air cooling spindle

Rotary rate

6000 or 24000 rpm/min

Working voltage

AC220V/50Hz or AC380V/50Hz

Engraving tool

Φ 3.175/4/6/12.7mm

File format

G code/ HPGL

Positioning precision

± 0.05mm

Repeat positioning precision

± 0.02mm



Application:

(1)Wood Products Processing,Cabinet,office table,Sports Equipment and so on.
(2)Furniture decoration industry,Panel furniture carving,Wood art murals,wood cabinet doors.
(3) Musical instrument industry,shape cuting,Three dimention curve surface carving,outline carving,carving and hollowing of violin panel and head
(4)EVA processing field: Carving and hollowing of VA material packing tools,medical apparatus,electronic products and so on



Our service:

1.One year warranty on whole machine.

2.Professional service before and after sale.

3.Supply training video and user' s manual in English.

4.Long-term support for the software and machine maintenance.

5.Free lifetime technology support on all orders.
