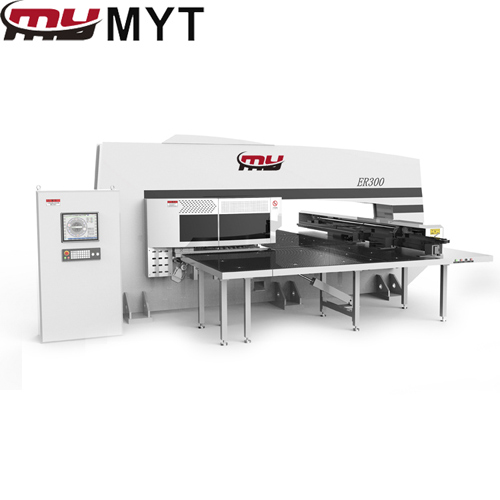

CNC Turret Punching Machine
Prix : 10 000,00 €
The punching force of D-ES300 series is coming from the main servo motor, which transmitted the force by a directly driven connection rod, this transmitting structure retains the advantage of mechanical driving TPP, which are mature and stable. The eliminated mechanical gap enables high driving precision, low noise, and long service life features. Benefiting from the electric servo punching head, you can punch with an average power consumption of only 5kw.
MYT brand CNC Turret punching press machine advantages is the strong rigidity and high tonnage ensure the stable accuracy for a long time, extend the service life of the machine and tools, and improve the positioning precision, reliability, and durability of the punch press.
TRANSMISSION METHOD |
ALL ELECTRICAL SERVO |
ALL ELECTRICAL SERVO |
D-ES300 Standard Format |
D-ES300Large Format |
|
PUNCHING CAPACITY |
30 ton |
30 ton |
MAX. HITRATE |
|
|
PUNCHING (PITCH=1MM) |
900HPM |
900 HPM |
PUNCHING (PITCH=25.4MM) |
400 HPM |
400 HPM |
MARKING |
1500 HPM |
1500 HPM |
WORKING RANGE |
|
|
X AXIS |
5000 mm |
5000 mm |
Y AXIS |
1250 mm |
1500 / 2000 mm |
MAX. SHEET THICKNESS |
6.35 mm |
6.35 mm |
MAX. WORKPIECE WEIGHT |
150 kg |
150 kg |
TOOL & TURRET |
|
|
NUMBER OF TOOLS/CLAMPS |
32 |
32 |
AUTO-INDEX |
2 B (dia <31.7mm)</span> |
2 B (dia <31.7)</span> |
TURRET LAYOUT |
16A 10B 2BC 2C 2D |
16A 10B 2BC 2C 2D |
We are one of the best cnc turret punch press manufacturers and turret punch press manufacturers,as cnc turret punching machine manufacturer,we provide auto duct line, cnc turret punching machine for sale,cnc turret punching machine,sheet metal punching machine for sale,cnc punching machine for sale and cnc turret punch press machine,welcome to contact us.
Personne à contacter : Zhao Melody , 8615951670606
