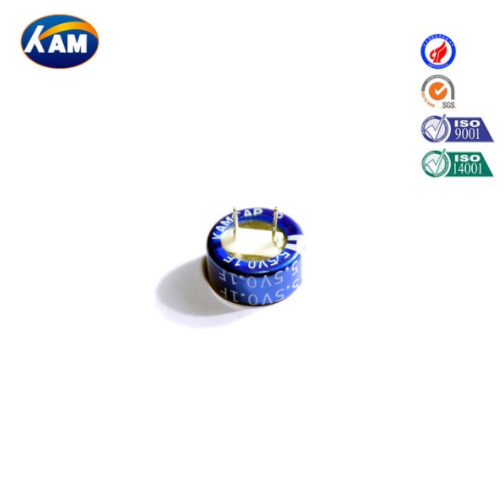

Coin Type Series 0.1F~1.5F 5.5V super capacitor

Series name

SE Series

Type name

SE -5R5-D

Rated voltage VR

5.5V

Surge voltage

5.8V

Capacity range

0.1F~1.5F

Operating temperature range

-25~ +70℃

Product life

Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR, Capacity attenuation≤30%, ESR change≤4 times.

High temperature endurance life：70℃, maintain VR, 1000 hours. Capacity attenuation≤30%, ESR change≤4 times

Model

Capacity

F

ESRΩ

Product size（mm）

DC

AC

1kHz

Diameter

Height

Pin distance

SE-5R5-D104VYC3H

0.1

100

50

13.0

6.5

5

SE-5R5-D104VYH3E

0.1

100

50

11.5

6.4

10.5

SE-5R5-D104VYV3C

0.1

100

50

11.5

12.33

4.7

SE-5R5-D224VYC3H

0.22

80

40

13.0

6.5

5

SE-5R5-D224VYH3E

0.22

80

40

11.5

6.4

10.5

SE-5R5-D224VYV3C

0.22

80

40

11.5

12.3

4.7

SE-5R5-D334VYC3H

0.33

80

40

13.0

6.5

5

SE-5R5-D334VYH3E

0.33

80

40

11.5

6.4

10.5

SE-5R5-D334VYV3C

0.33

80

40

11.5

12.3

4.7

SE-5R5-D474VYC3H

0.47

80

40

13.0

6.5

5

SE-5R5-D474VYH3E

0.47

80

40

11.5

6.4

10.5

SE-5R5-D474VYV3C

0.47

80

40

11.5

12.3

4.7

SE-5R5-D684VYC3G

0.68

30

15

20.5

7

6

SE-5R5-D684VYC3H

0.68

30

15

20.5

7.4

5

SE-5R5-D684VYH3C

0.68

30

15

18.7

5.5

20

SE-5R5-D684VYV3C

0.68

30

15

18.7

20.2

5

SE-5R5-D105VYC3G

1

30

15

20.5

7

6

SE-5R5-D105VYC3H

1

30

15

20.5

7.4

5

SE-5R5-D105VYH3C

1

30

15

18.7

5.5

20

SE-5R5-D105VYV3C

1

30

15

18.7

20.2

5

SE-5R5-D155VYC3G

1.5

20

10

20.5

7

6

SE-5R5-D155VYC3H

1.5

20

10

20.5

7.4

5

SE-5R5-D155VYH3C

1.5

20

10

18.7

5.5

20

SE-5R5-D155VYV3C

1.5

20

10

18.7

20.2

5
