Coin Type Series 0.1F~1.5F 5.5V super capacitor
coin cell supercapacitor & coin capacitor
Performance characteristics of 0.1F~1.5F Super Capacitor 5.5 v : Standard energy series.
0.1F~1.5F 5.5V Super Capacitor Typical application: RAM, Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc.
Coin Type Series 0.1F~1.5F 5.5V Super Capacitor Specification Sheet：
|
Series name |
SE Series |
|
Type name |
SE -5R5-D |
|
Rated voltage VR |
5.5V |
|
Surge voltage |
5.8V |
|
Capacity range |
0.1F~1.5F |
|
Operating temperature range |
-25~ +70°C |
|
Product life |
Normal temperature cycle life：25℃, 1 million cycles between VR and 1/2VR, Capacity attenuation≤30%, ESR change≤4 times. |
|
High temperature endurance life：70℃, maintain VR, 1000 hours. Capacity attenuation≤30%, ESR change≤4 times |

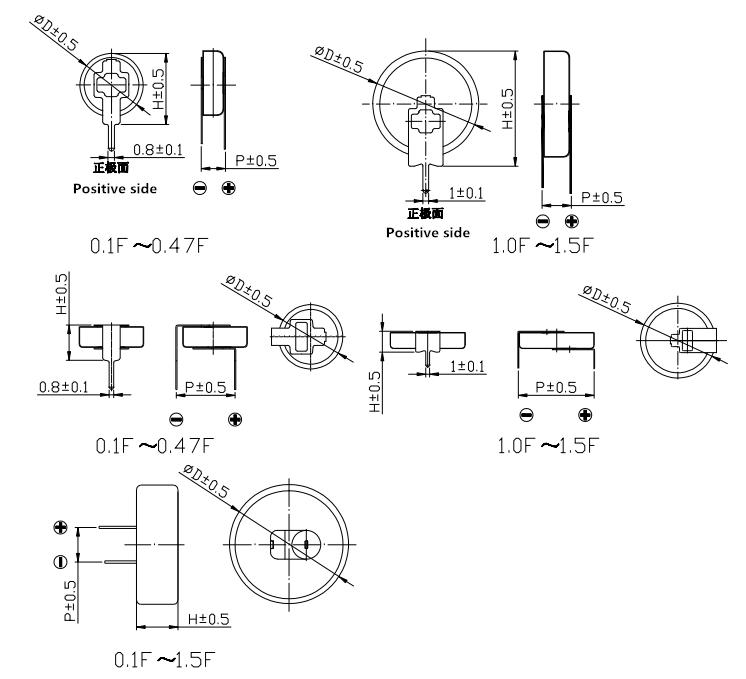

SE-5R5-D （Coin type series ultra super capacitor）Product performance list
|
Model |
Capacity F |
ESRΩ |
Product size（mm） |
|||
|
DC |
AC 1kHz |
Diameter
|
Height |
Pin distance |
||
|
SE-5R5-D104VYC3H |
0.1 |
100 |
50 |
13.0 |
6.5 |
5 |
|
SE-5R5-D104VYH3E |
0.1 |
100 |
50 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D104VYV3C |
0.1 |
100 |
50 |
11.5 |
12.33 |
4.7 |
|
SE-5R5-D224VYC3H |
0.22 |
80 |
40 |
13.0 |
6.5 |
5 |
|
SE-5R5-D224VYH3E |
0.22 |
80 |
40 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D224VYV3C |
0.22 |
80 |
40 |
11.5 |
12.3 |
4.7 |
|
SE-5R5-D334VYC3H |
0.33 |
80 |
40 |
13.0 |
6.5 |
5 |
|
SE-5R5-D334VYH3E |
0.33 |
80 |
40 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D334VYV3C |
0.33 |
80 |
40 |
11.5 |
12.3 |
4.7 |
|
SE-5R5-D474VYC3H |
0.47 |
80 |
40 |
13.0 |
6.5 |
5 |
|
SE-5R5-D474VYH3E |
0.47 |
80 |
40 |
11.5 |
6.4 |
10.5 |
|
SE-5R5-D474VYV3C |
0.47 |
80 |
40 |
11.5 |
12.3 |
4.7 |
|
SE-5R5-D684VYC3G |
0.68 |
30 |
15 |
20.5 |
7 |
6 |
|
SE-5R5-D684VYC3H |
0.68 |
30 |
15 |
20.5 |
7.4 |
5 |
|
SE-5R5-D684VYH3C |
0.68 |
30 |
15 |
18.7 |
5.5 |
20 |
|
SE-5R5-D684VYV3C |
0.68 |
30 |
15 |
18.7 |
20.2 |
5 |
|
SE-5R5-D105VYC3G |
1 |
30 |
15 |
20.5 |
7 |
6 |
|
SE-5R5-D105VYC3H |
1 |
30 |
15 |
20.5 |
7.4 |
5 |
|
SE-5R5-D105VYH3C |
1 |
30 |
15 |
18.7 |
5.5 |
20 |
|
SE-5R5-D105VYV3C |
1 |
30 |
15 |
18.7 |
20.2 |
5 |
|
SE-5R5-D155VYC3G |
1.5 |
20 |
10 |
20.5 |
7 |
6 |
|
SE-5R5-D155VYC3H |
1.5 |
20 |
10 |
20.5 |
7.4 |
5 |
|
SE-5R5-D155VYH3C |
1.5 |
20 |
10 |
18.7 |
5.5 |
20 |
|
SE-5R5-D155VYV3C |
1.5 |
20 |
10 |
18.7 |
20.2 |
5 |
Typical Application
|
Series |
Application range |
Instance |
|
SP, LR, HP, HT |
Backup power |
RAM、Detonator, car recorder, smart meter, vacuum switch, digital camera, motor drive, clock circuit, UPS, toy, program-controlled switch, etc. |
|
SE, HP, HE |
Energy storage |
Water meter, electricity meter, gas meter, UPS, security equipment, computer memory, communication equipment |
|
SE Coin type, HE |
Energy storage |
Flashlights, water meters, gas meters, taillights, small appliances, etc. |
|
HP、LR |
High power support |
Wind power, locomotive start, ignition, electric vehicles, etc. |
|
MK |
Backup power High current operation |
Electrified railway, smart grid control, hybrid vehicle, wireless transmission, rail power system |
Are you looking for small supercapacitor?
As one of the most professional super capacitor manufacturers of supercapacitor ultracapacitor, we have been devoting ourselves in providing high quality edlc capacitor with competitive price. If you want to buy ultracapacitor, don't hesitate to contact.
